Hagor BrackIT XL HD II for TVs 55–75 inches (140–191 cm), max. load 80 kg, VESA 200 x 200 to max. 800 x 600 mm, Tilt angle -6 to +7 degrees, swivels up to ±45 degrees, wall distance 50 to 648 mm

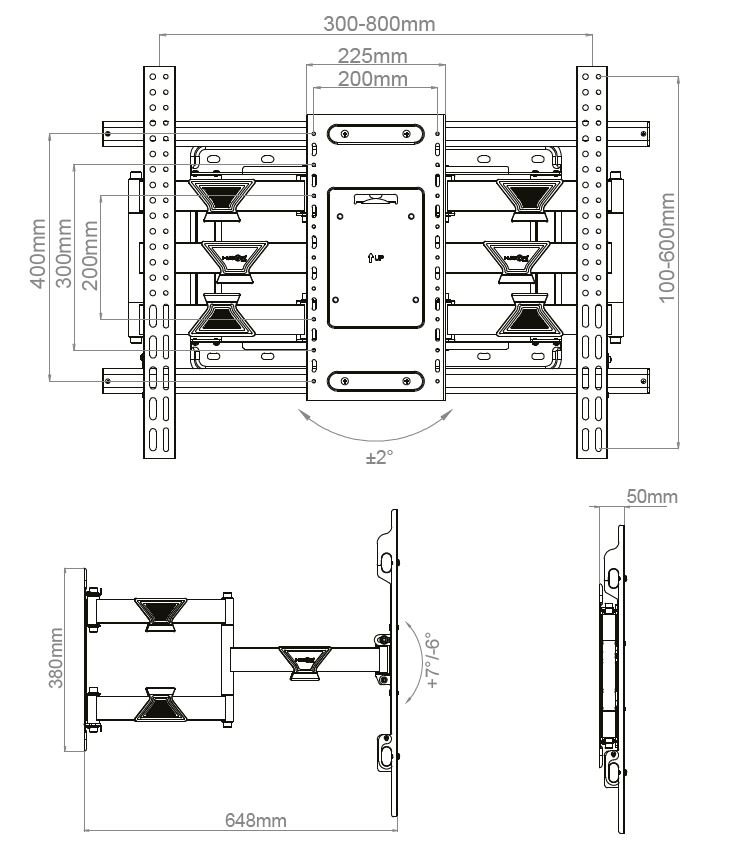

The tilt- and swivel-adjustable BrackIT XL HD II wall mount is suitable for single screens with a screen diagonal of 55–75 inches | 140–191 cm. Installation can be done in either landscape or portrait orientation using the included universal VESA mount, compatible with VESA sizes ranging from a minimum of 200 x 200 mm to a maximum of 800 x 600 mm. The tilt angle of the mount can be continuously adjusted between -6° and +7° during installation. The mount can also be swiveled up to ±45°, depending on the size of the mounted screen.

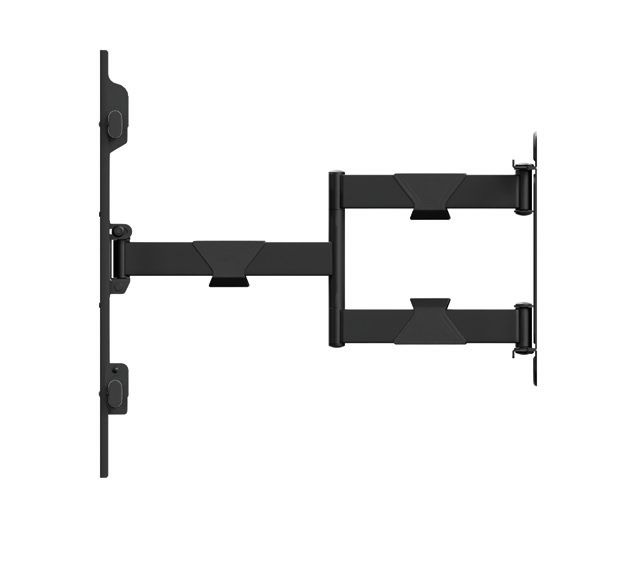

The mount also allows for post-installation leveling of ±2°. The distance from the wall can be adjusted using the extension arm from a minimum of 50 mm to a maximum of 648 mm. Cables are routed along the support arms using cable clips. This ensures that cables are neatly routed and do not interfere when the mount is moved. The maximum load capacity is 80 kg.
– Can be mounted in landscape or portrait orientation
– 55–75 inches corresponds to approx. 140–191 cm
– Includes universal VESA mount, from min. VESA 200 x 200 to max. 800 x 600 mm
– Tiltable from -6° to +7° (continuously adjustable)
– Tilt angle adjustable from the mounting side
– Swivels ±45°, depending on screen size
– ±2° post-installation leveling
– Variable wall distance, min. 50 to max. 648 mm
– Cable management via cable clips
– 80 kg maximum load capacity
– Solvent-free, impact- and scratch-resistant powder coating
– Color: black
