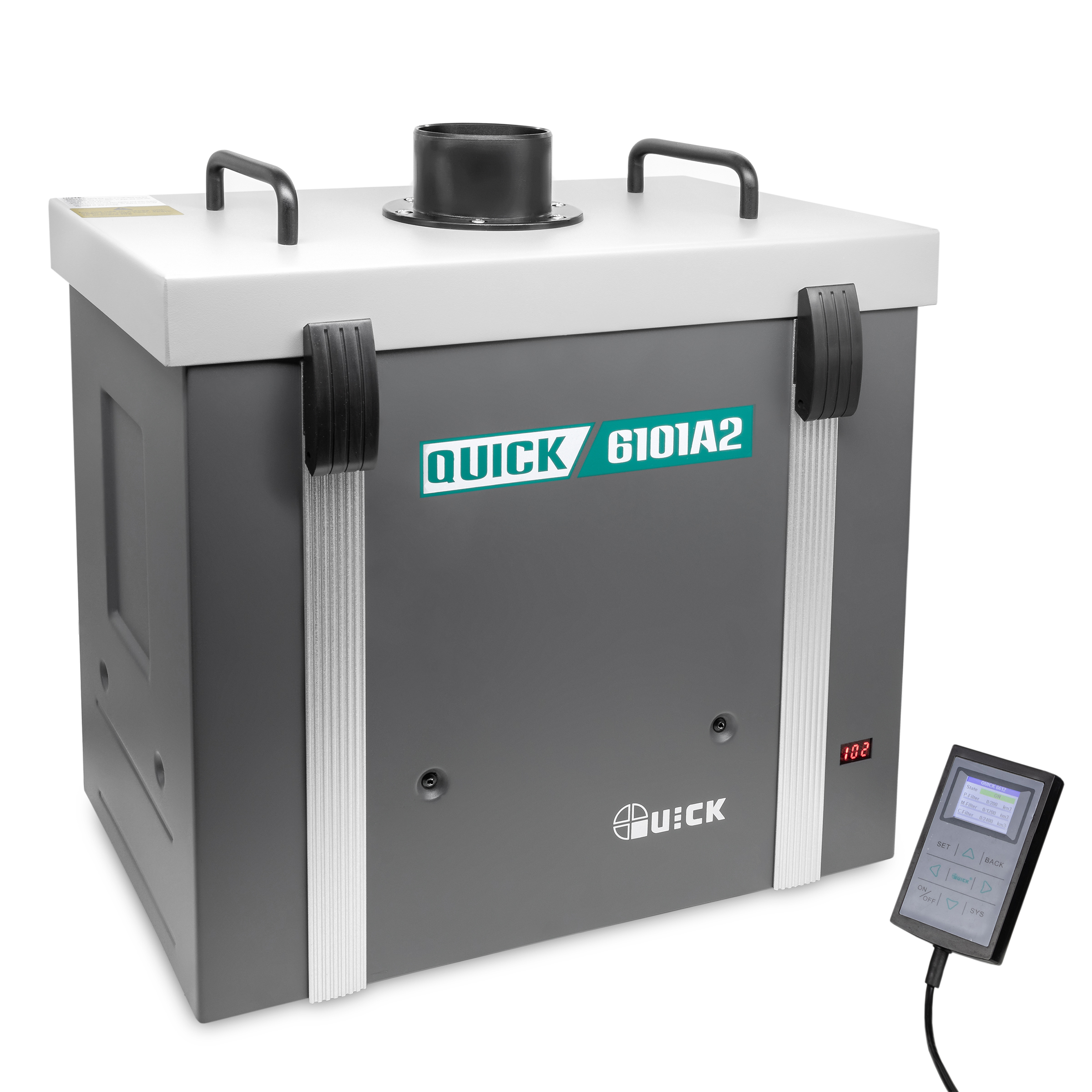

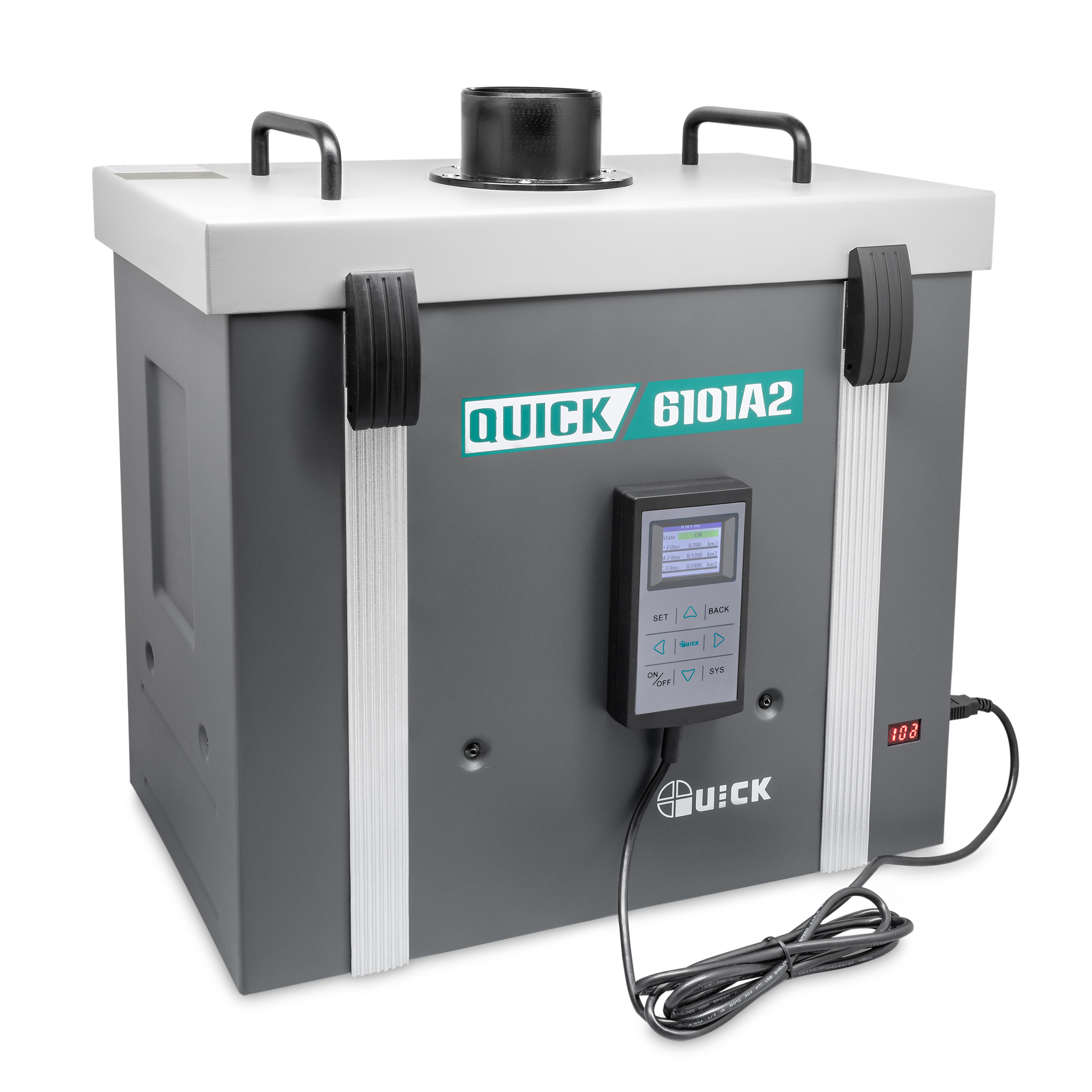

QUICK 6101A2 Solder Fume Filtration System – Efficient & Powerful
The QUICK 6101A2 reliably removes solder fumes and harmful vapors in electronics manufacturing facilities, laboratories, and workshops. With an extraction capacity of up to 100 m³/h, it significantly improves air quality. The air recirculation system ensures efficient use of the purified air.

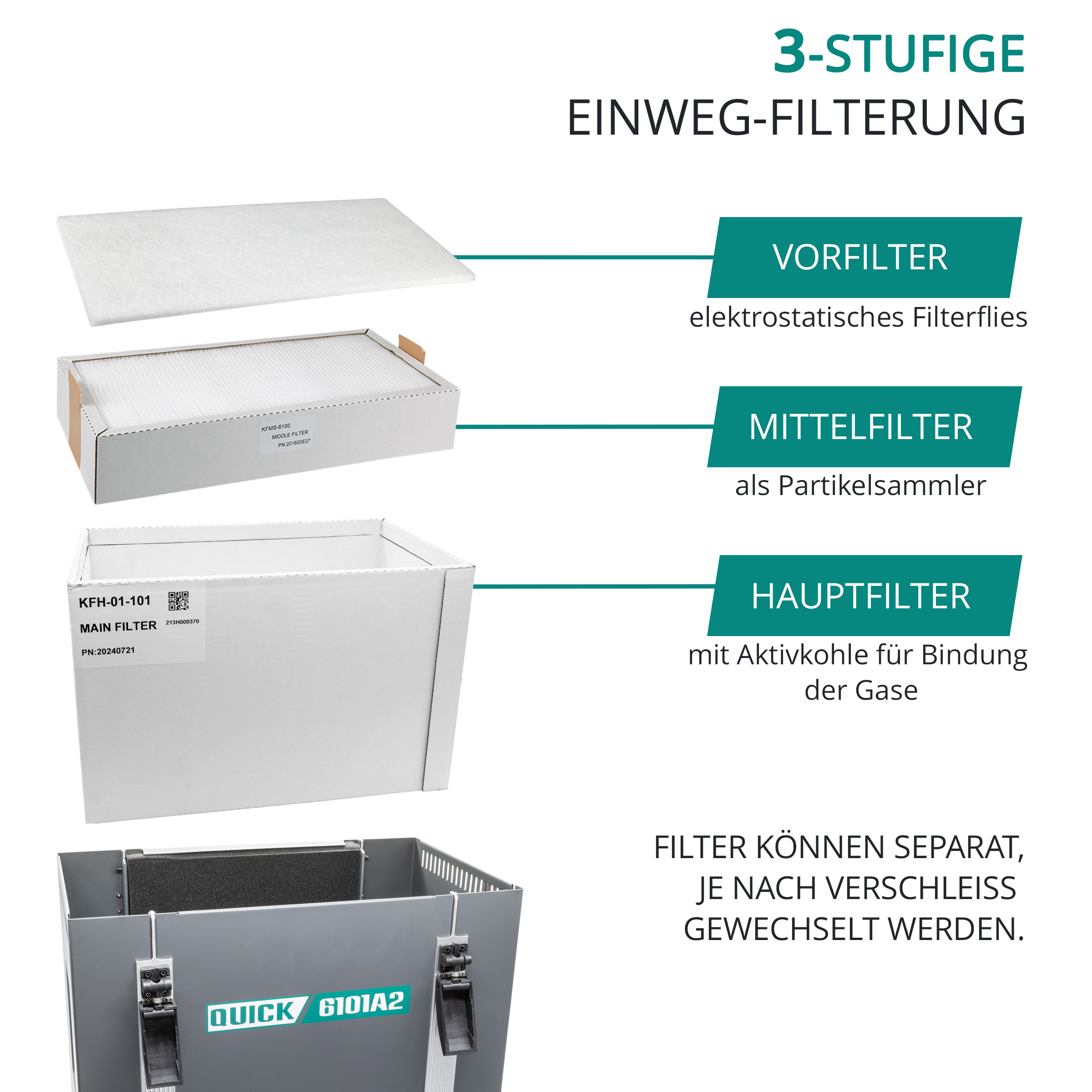

3-stage filtration (99.95% filtration efficiency)
Spark arrestor grille – Captures sparks and coarse particles.

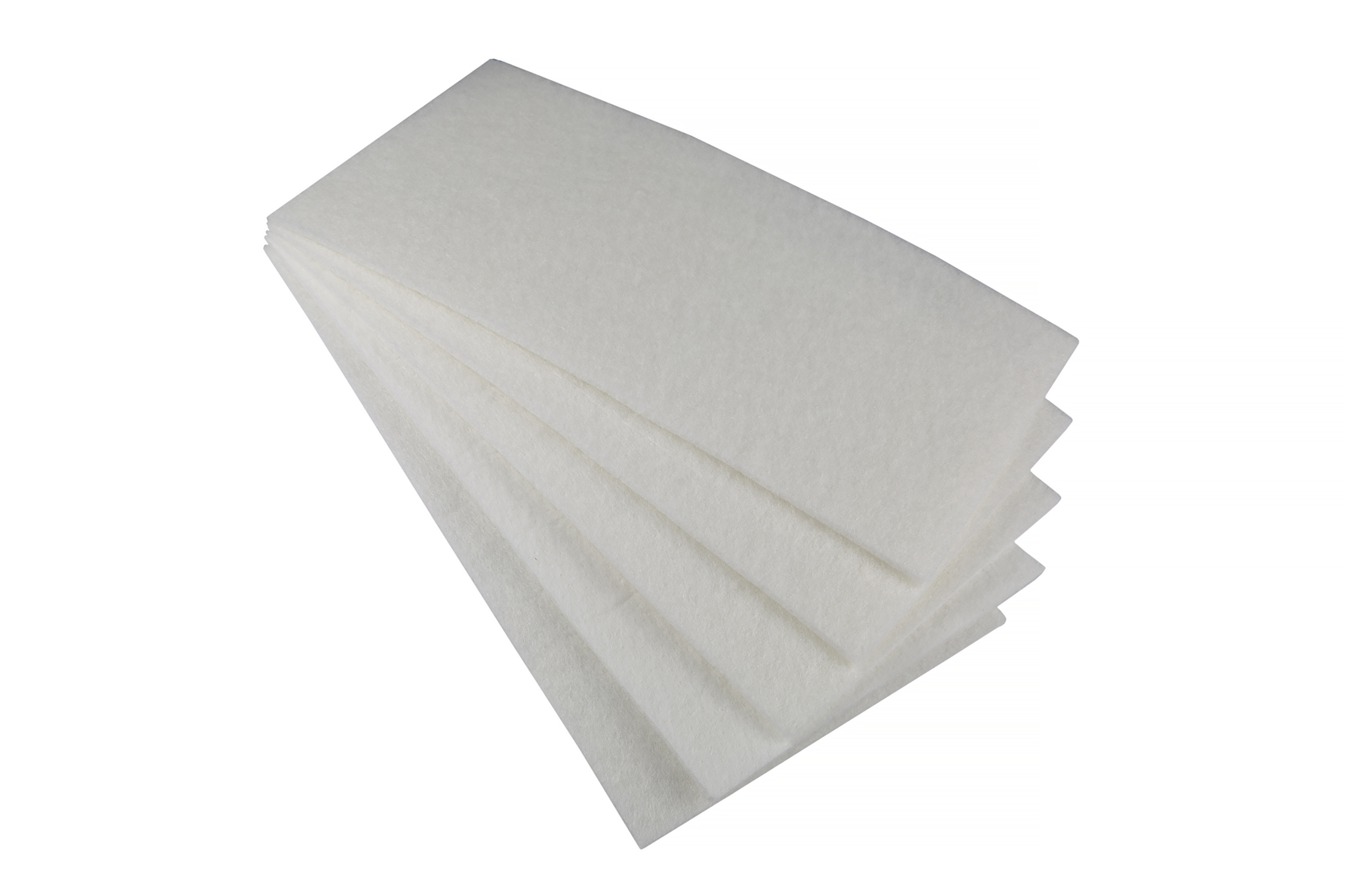

Pre-filter (P-filter, electrostatic) – Captures larger dust particles.

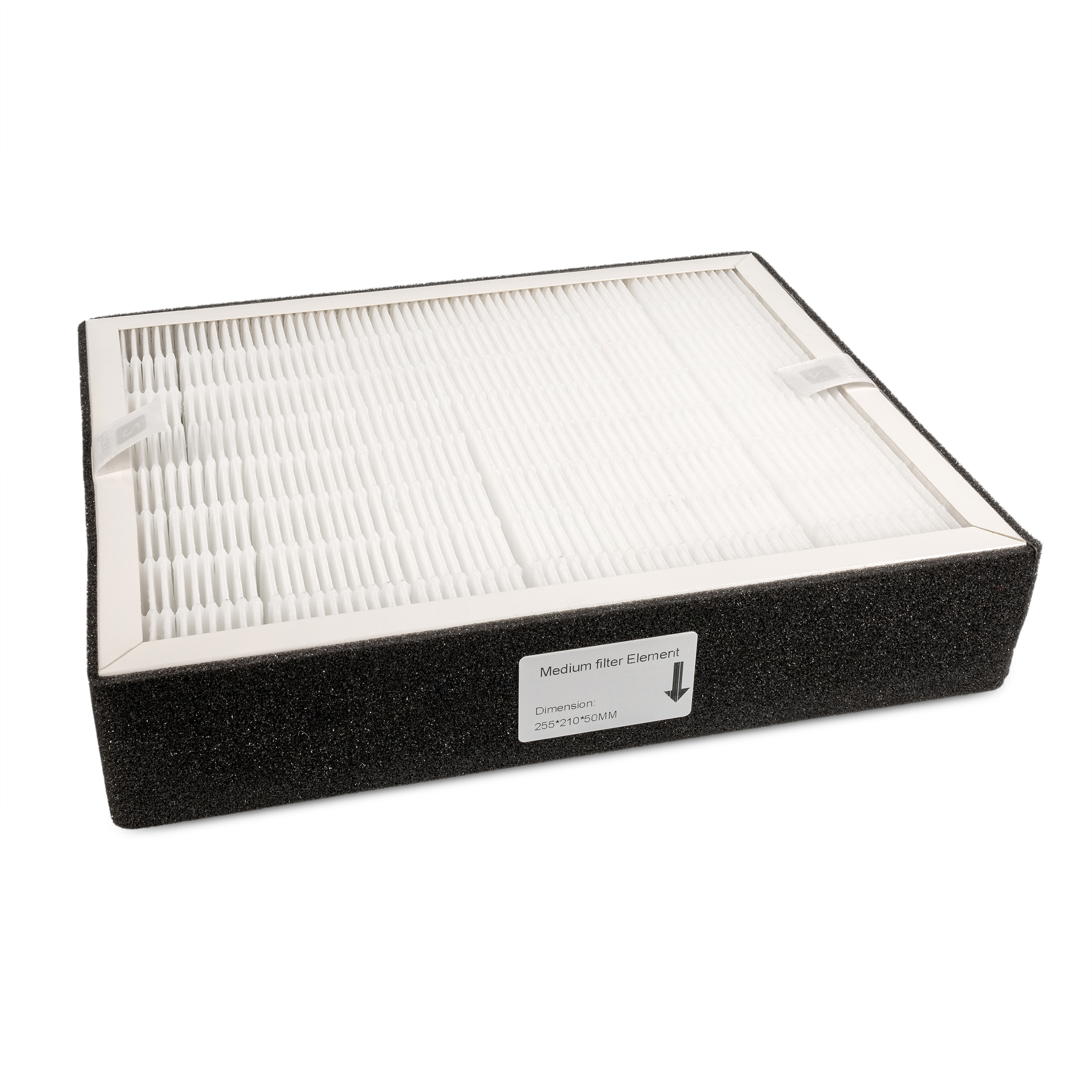

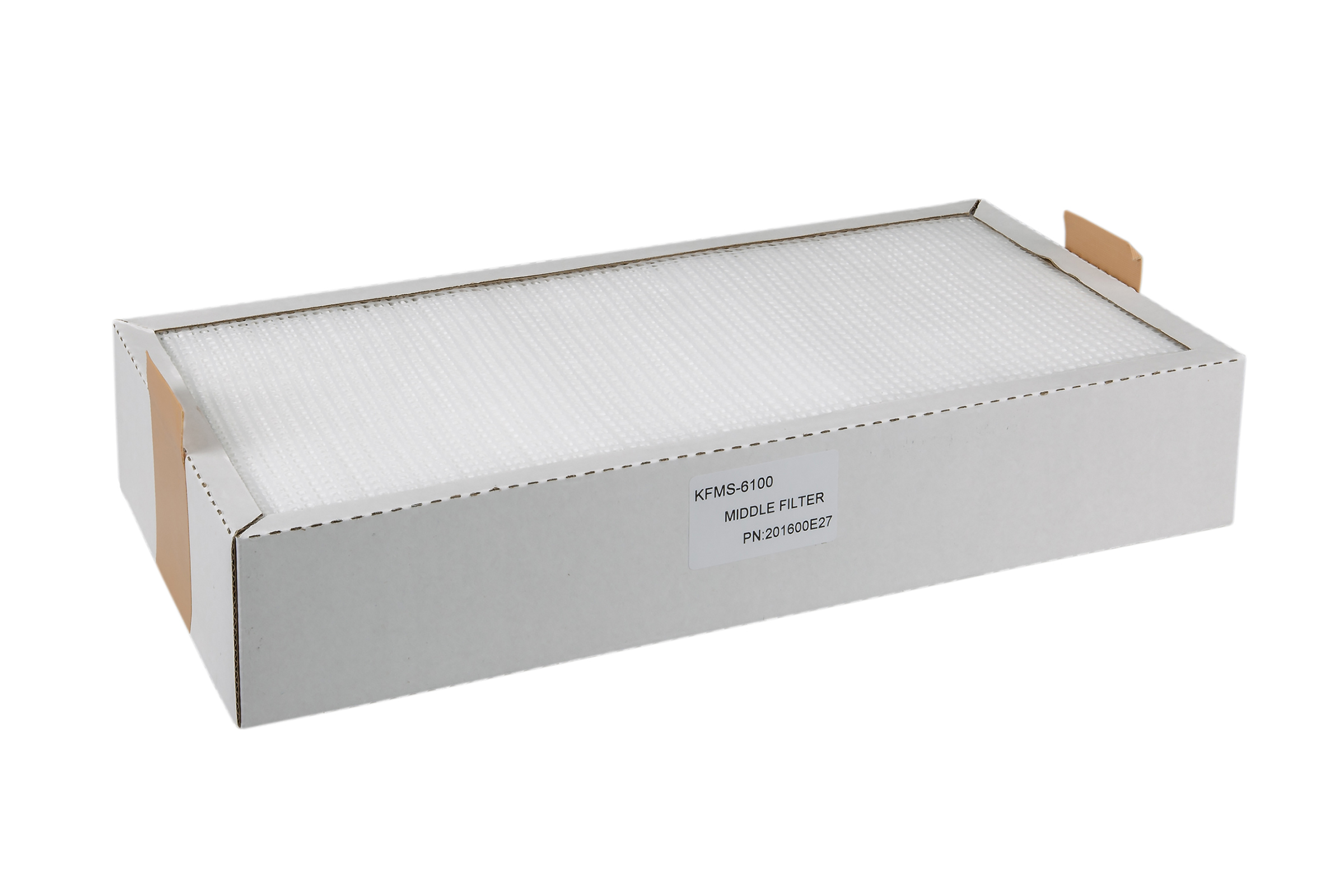

Intermediate filter (M-filter, HEPA H13) – Filters particles down to 0.3 µm.

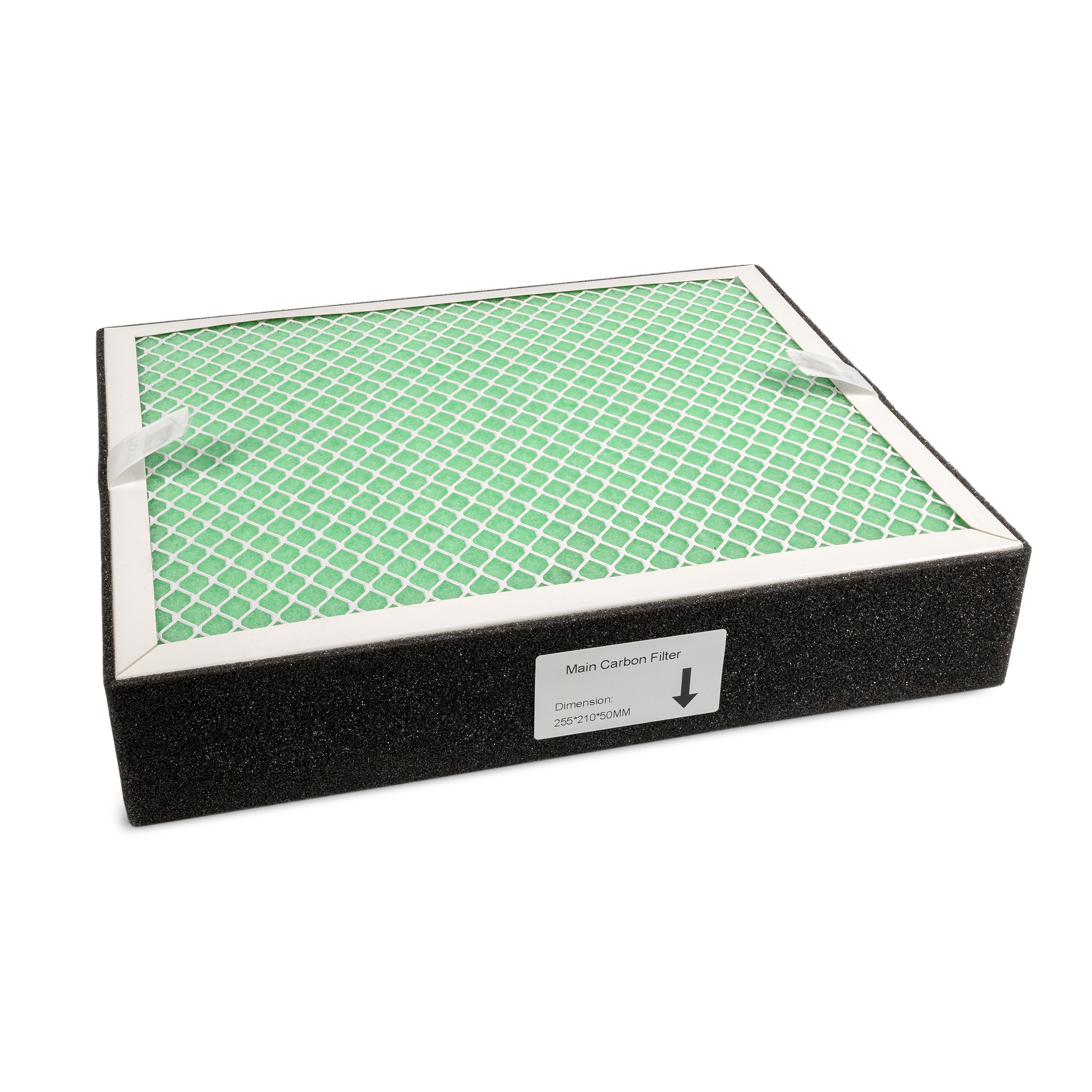

Main filter (C-filter, activated carbon) – Absorbs harmful gases.
All filters are individually replaceable – for cost-effective maintenance.
Flexible extraction arm (1050 mm)
ESD extraction nozzle (50 mm diameter, 105 mm opening)
Lockable joints & 360° rotation
Spring mechanism for easy retraction & return
Simple operation & smart control
Digital display with real-time information on airflow & filter status

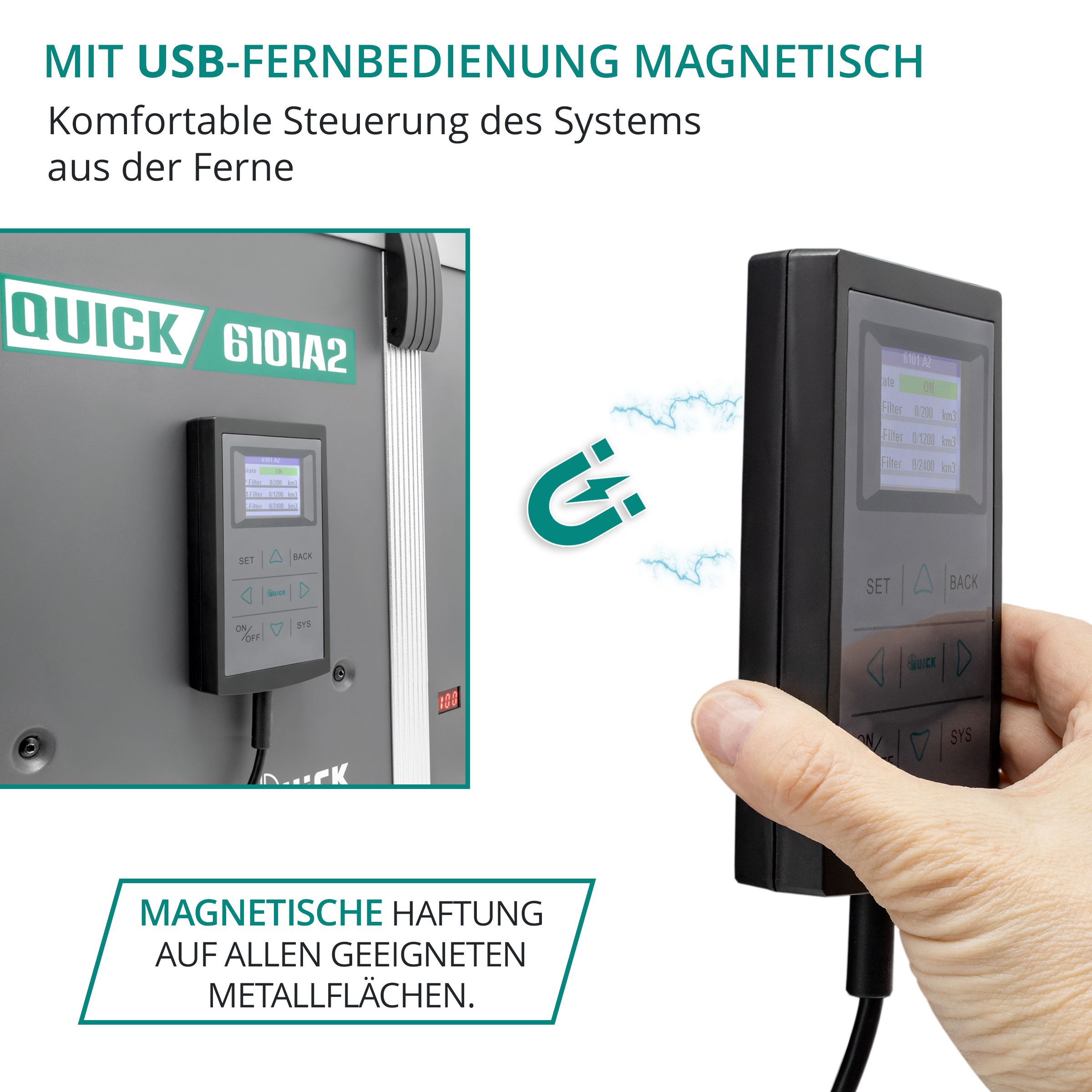

USB remote control for stepless power adjustment

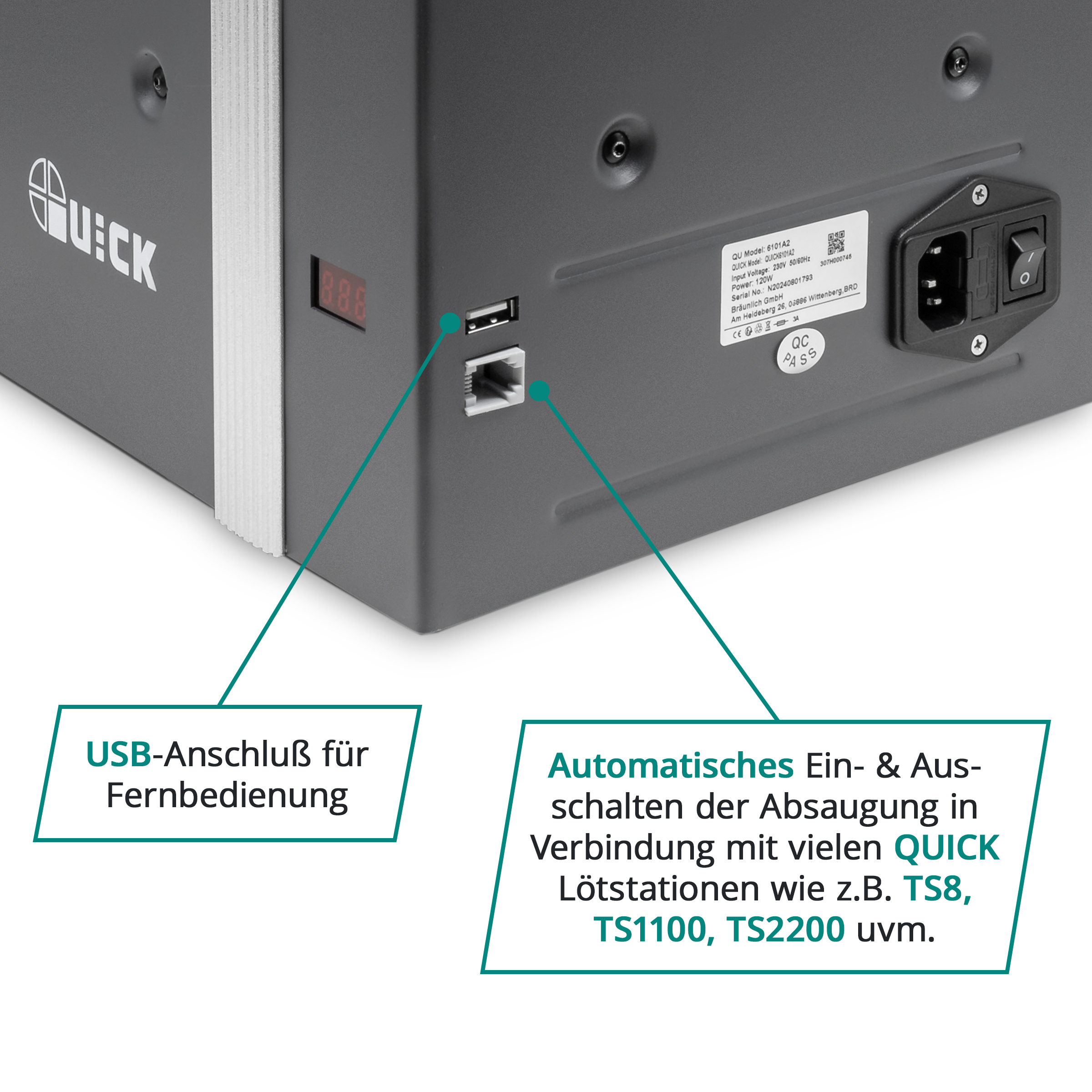

Automatic control when connected to a QUICK soldering station
Technical Specifications

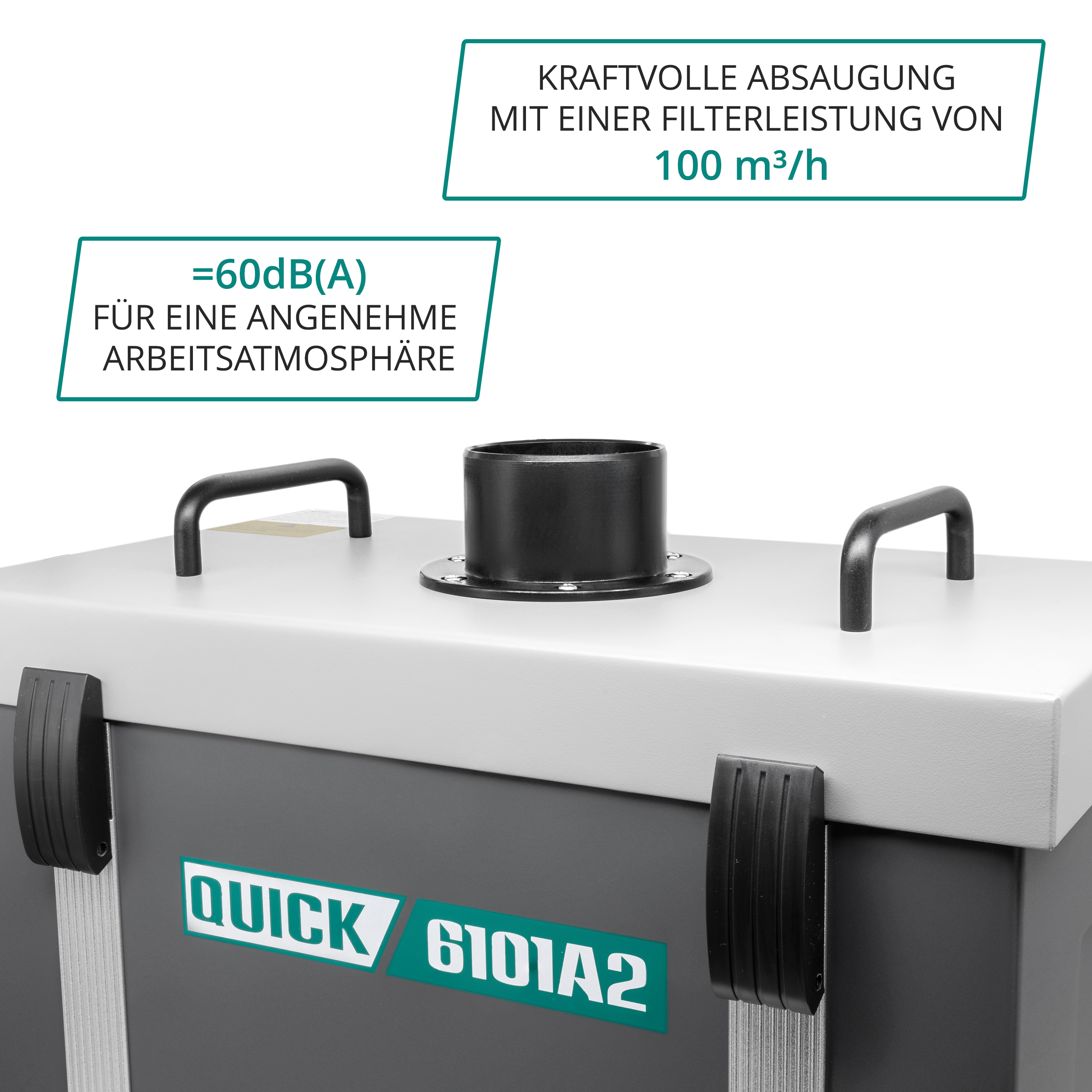

Power: 120 W | Extraction capacity: up to 100 m³/h
Filtration efficiency: 99.95% at 0.3 µm
Noise level: ≤ 60 dB(A)

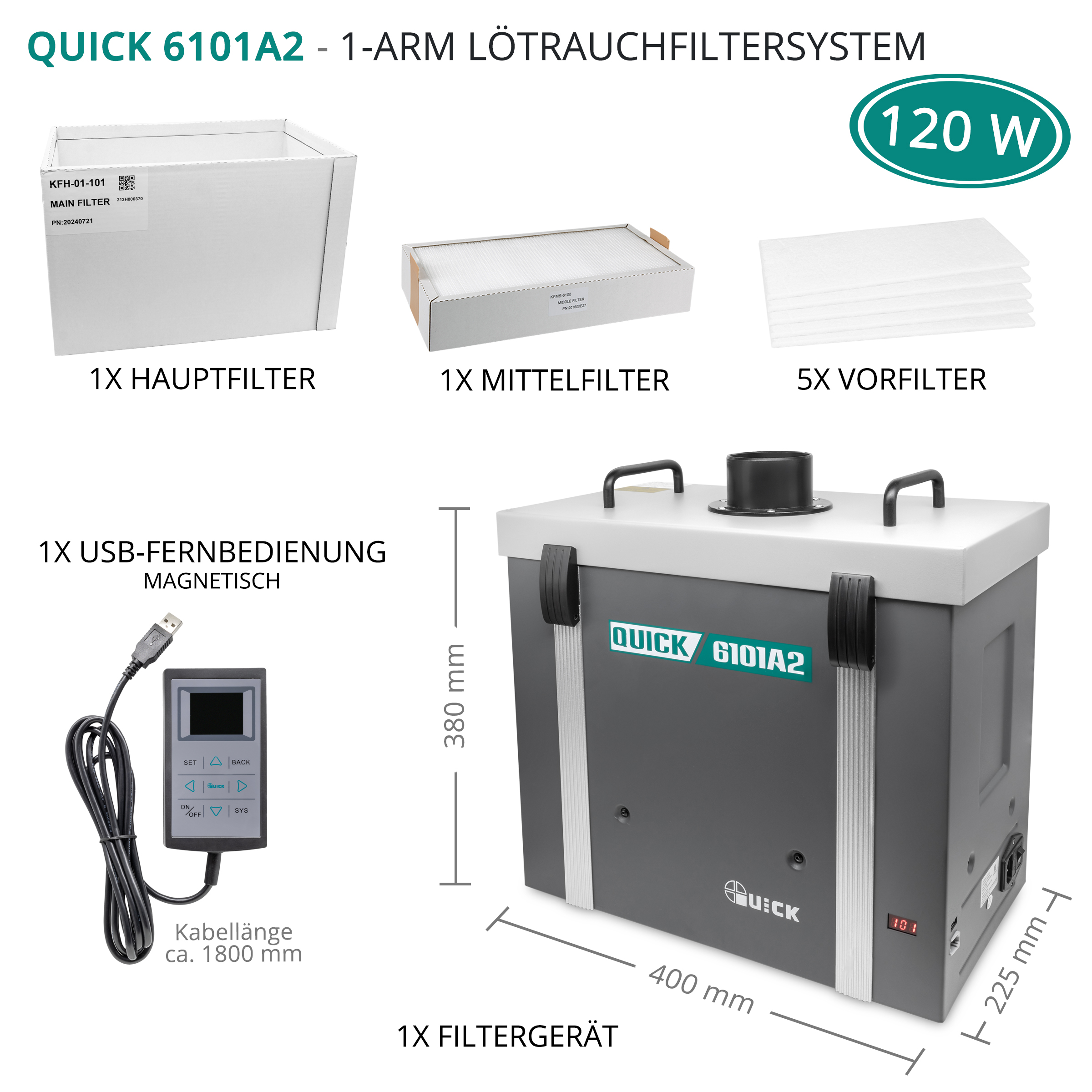

Dimensions: 400 × 225 × 380 mm | Weight: 13.4 kg

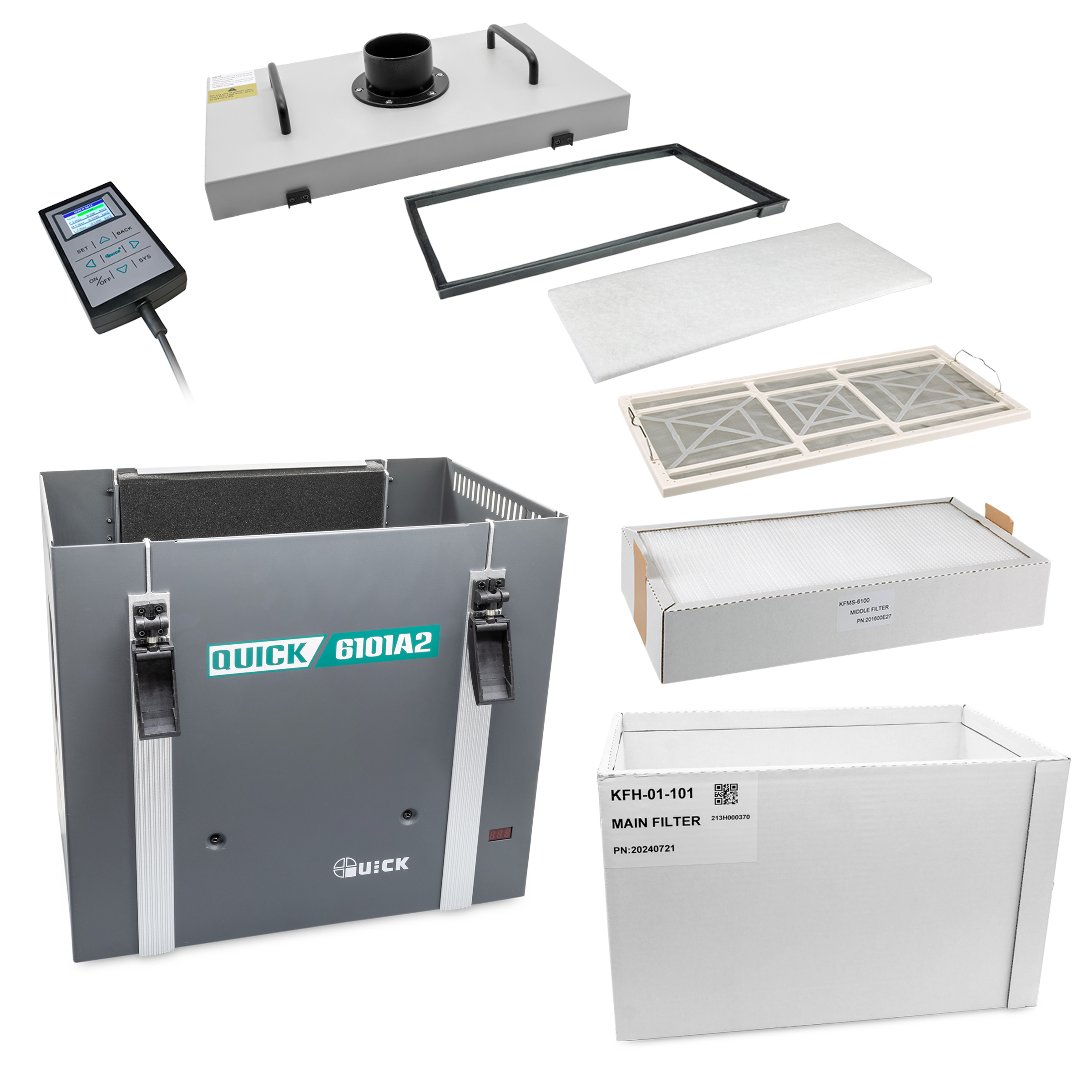

Scope of Delivery
✔ Solder fume filtration system with USB remote control, 1.05 m extraction arm with 125 mm extraction nozzle, table adapter & 2 m extraction hose, 5x pre-filters, intermediate filter, main
