GALLUNOPTIMAL Quattro-Switch (QUAD) LNB for feed intake Ø40 mm
+ Input frequency: Low Band 10.7-11.7 GHz, High Band 11.7-12.75 GHz
+ IF frequency: 950 – 1950 / 1100 – 2150 MHz
+ LOF frequency: 9.75 GHz / 10.6 GHz
+ Gain 60 dB
+ Noise factor 0.1 dB
+ Cross compensation: 20 dB
+ Power consumption 120 mA
+ Operating temperature -35°C – 70°C

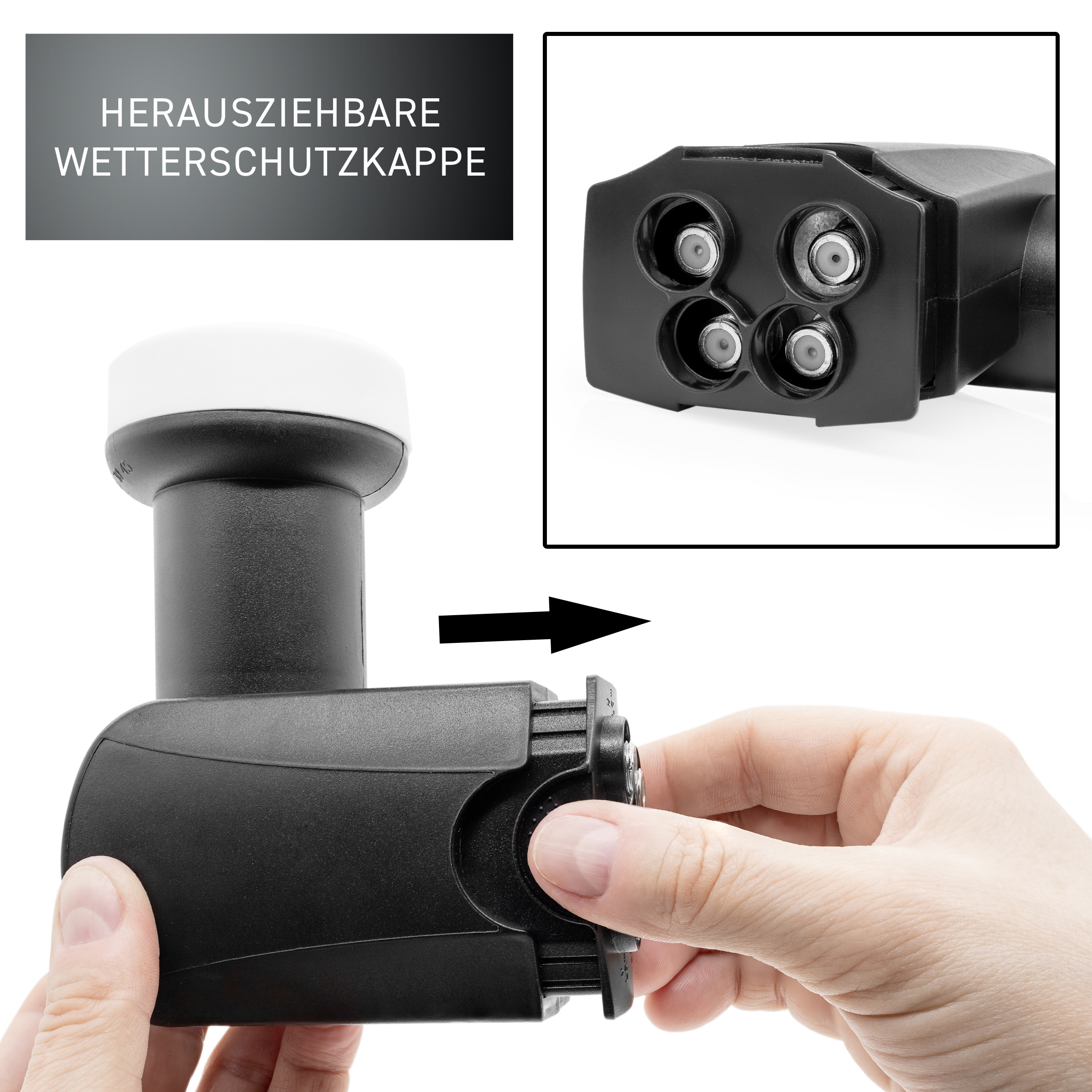

+ 4 F connections for receivers with weather protection

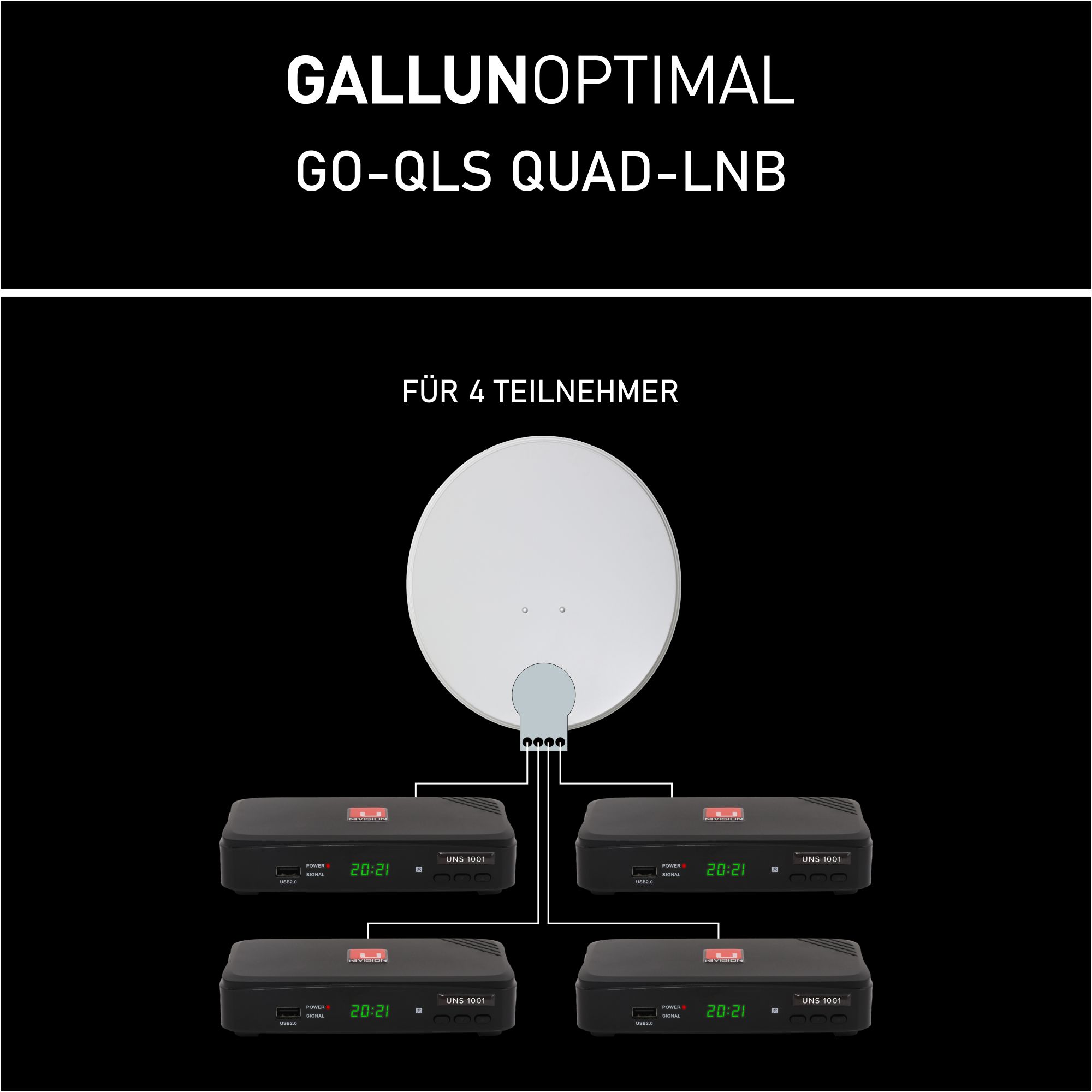

You can connect 4 satellite receivers such as satellite receivers or TV sets with integrated satellite receivers or TV sets with triple tuners directly to this LNB. No additional multi-switch is required.
