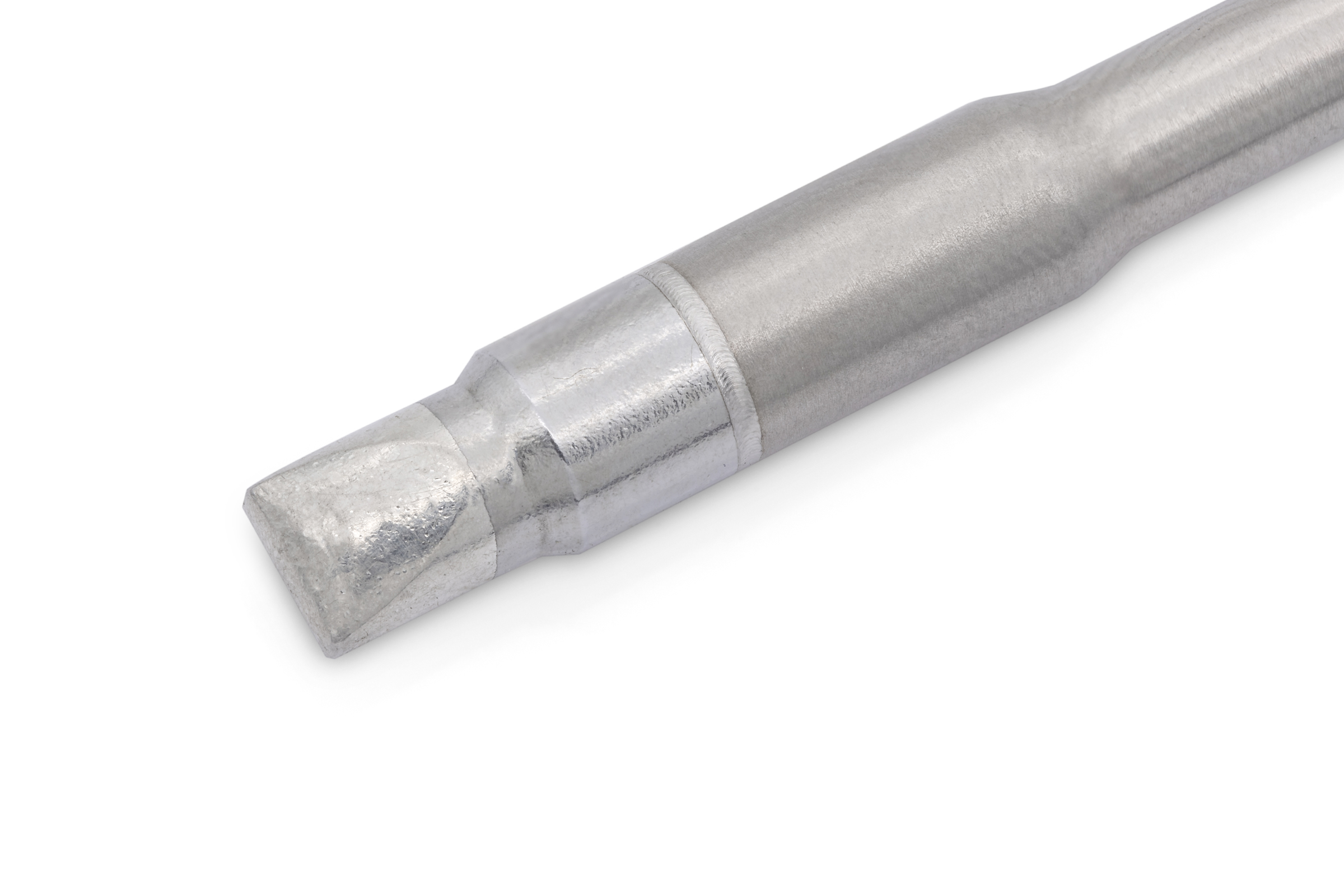

Tip shape: short cone, chisel-shaped blunt
Design: straight

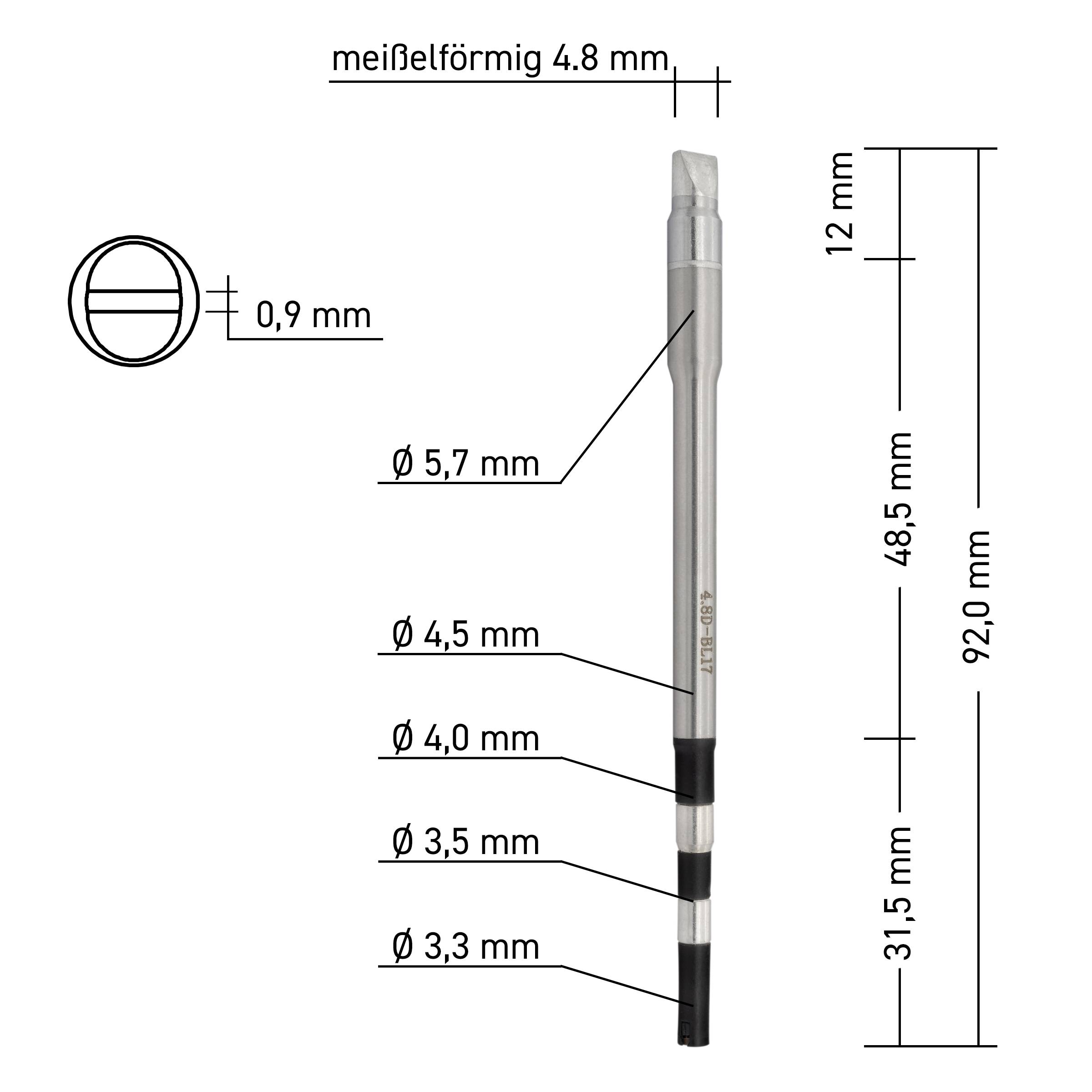

Dimensions: 4.8 mm wide x 0.9 mm
Solder wetting: 5 mm solder wetted
Manufacturer: QUICK
Type: Rapid cartridge soldering tip
For soldering station: QUICK TS8, TS8
Suitable soldering iron: QUELKTSS80A
Temperature control: built-in thermocouple
Special feature: integrated chip for temperature calibration value
Quick cartridge soldering tips combine a long service life with maximum thermal efficiency. They are suitable for general electronic production.
This is achieved through the direct connection between the soldering tip and the heating element. A thermocouple integrated into the tip ensures the fastest possible readjustment of the required energy and is also ideal for more demanding soldering tasks.
A chip integrated into the soldering tip can store an individual calibration value. This means that this value is available to the station each time it is used, guaranteeing precise temperature readings at the station. An indicator of reliable solder joint quality, high reproducibility, and reliability. This function is particularly important and recommended for larger soldering tip shapes and the available soldering pots as soldering tips.
This makes the TSS08 soldering tip series ideal for industry and production or repair tasks (smartphones, tablets, laptops) with a narrow available temperature window (process window) and/or sensitive components.
In addition, the highly accurate temperature control and standby function of the TS8 and TS8+ soldering stations protect the soldering tips and ensure longer tip service life. This minimizes follow-up costs and optimizes processes.
