QUICK hot air rework station digital 1000W, 1 – 60 L/min., +100 to +500°C, calibration function, automatic standby and idle mode, constant output temperature, auto cooling system, 3 fixed memory slots with 4-piece accessory set

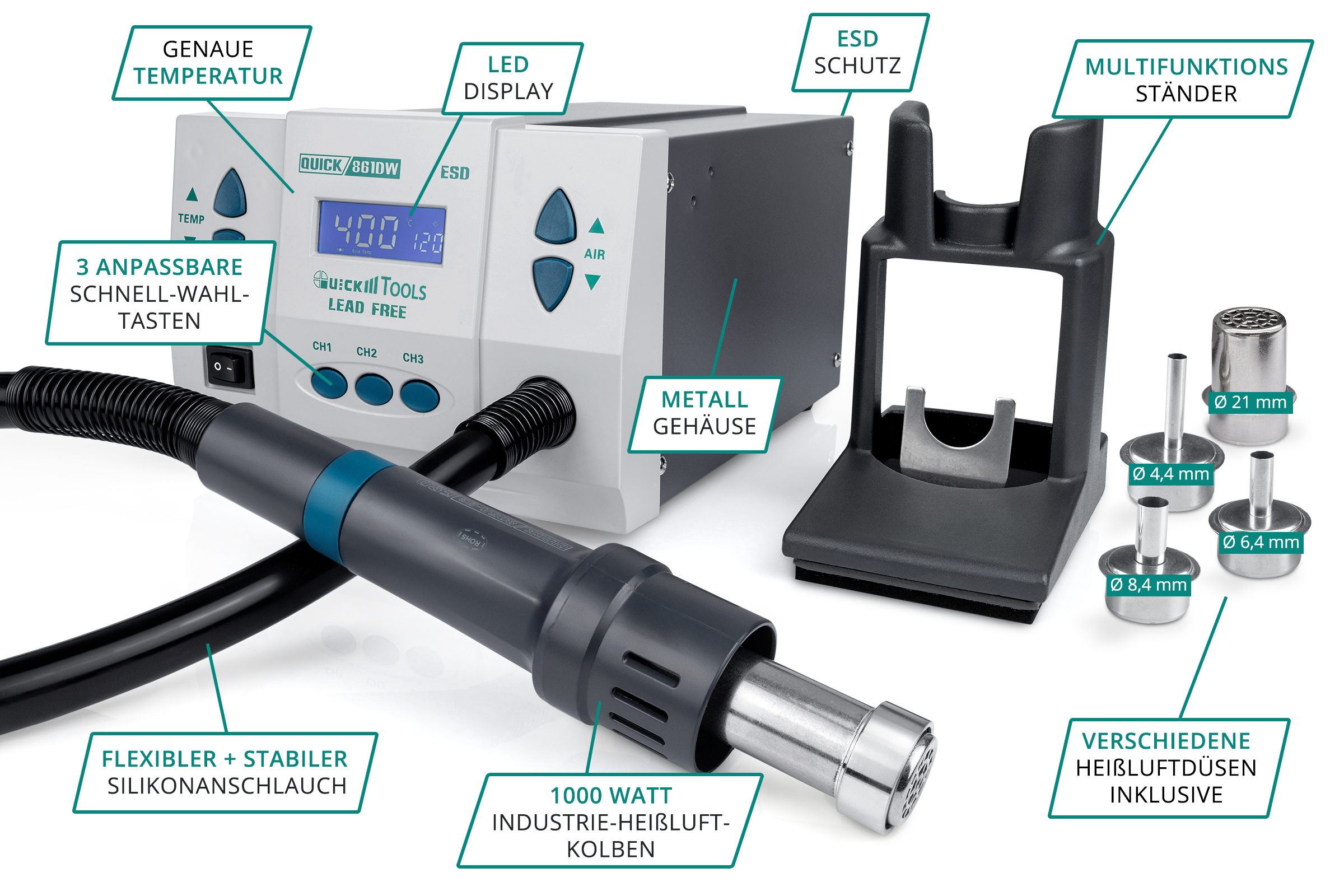

The QUICK 861DW is a digital hot air soldering station aimed at the experienced user.
All the materials used are of high quality and well made.
For example, a brushless and low-wear motor is used. The entire hot air soldering station is designed for a long service life. Accuracy is also a point that is given a great deal of attention. The control circuit used for temperature control enables temperature stability to be maintained to within +/- 2 °C. The air volume can be regulated in 1 liter increments, with a range of 1 – 60 l/min. Other highlights include an auto standby & hibernation function, which is controlled by a magnetic switch in the hot air piston. As soon as the piston is placed in the stand, the magnetic switch detects this and activates an automatic cooling function. If less than 100°C is reached, the station switches off the airflow.
There are 3 programmable memory slots available to quickly access your most frequent settings. Password protection, a calibration function and ESD protection are also included in the package.
Technical data:
– Display: LCD
– Power input: 1000 W
– Operating voltage: 230 V / 50 Hz
– Temperature range: 100-500 °C
– Temperature stability: +/- 2 °C
– Max. ambient temperature: 40 °C
– Hot air setting range: 1 – 60 l/min. (in 120 increments)
– Standby: 0-999 s

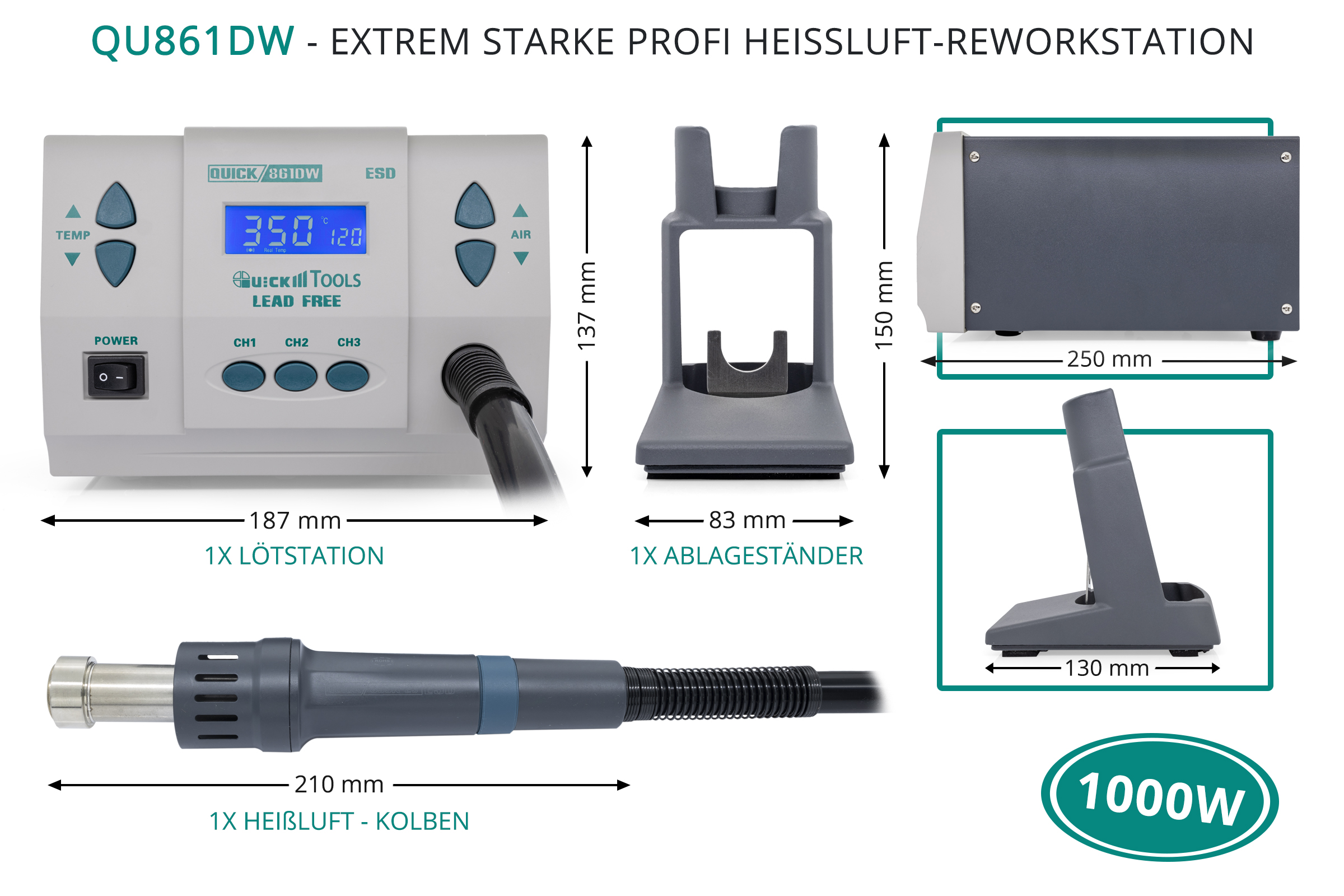

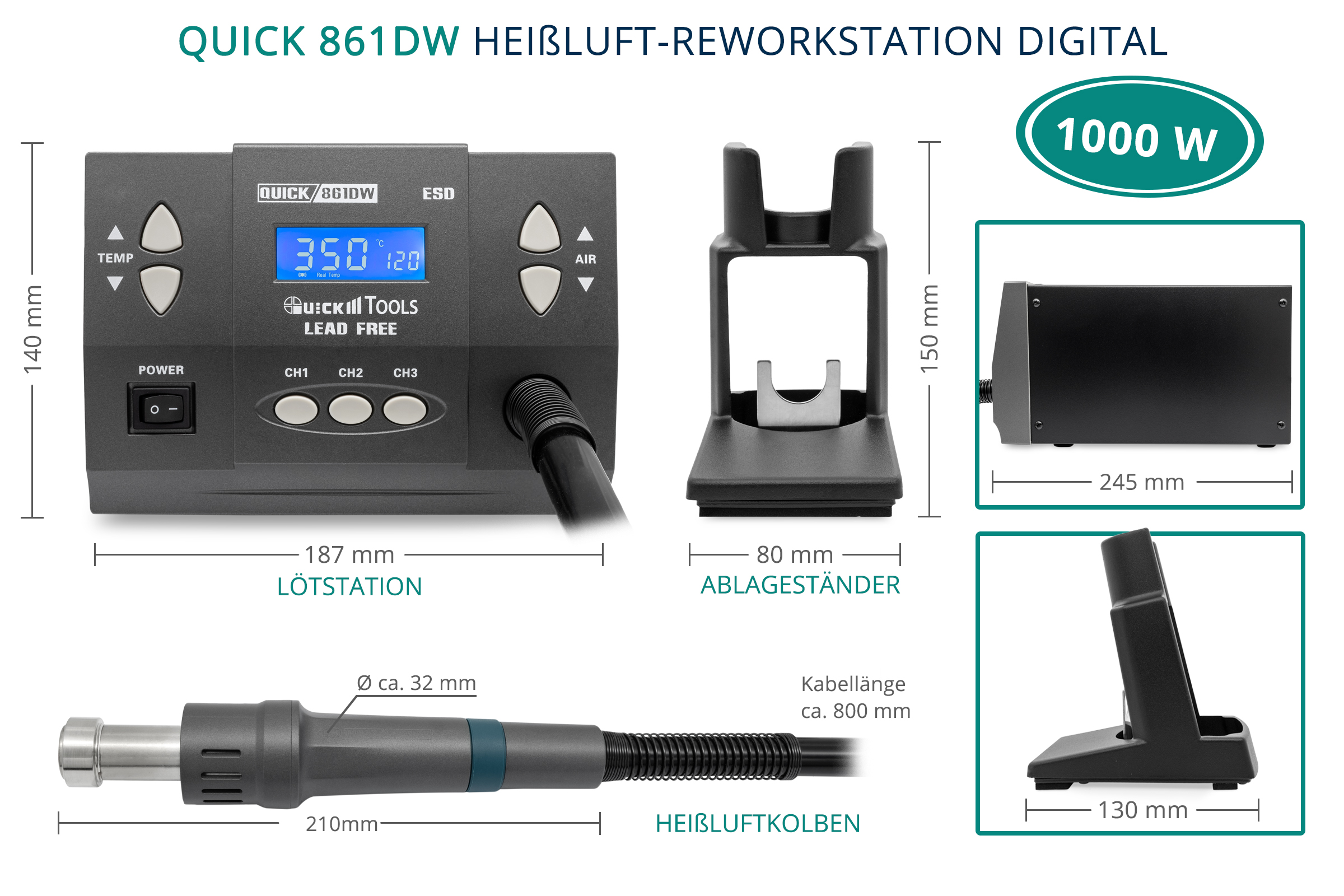

– Dimensions: W-H-D 245x135x188 mm
– Weight: 3.95 kg
– Conformity: RoHS, CE

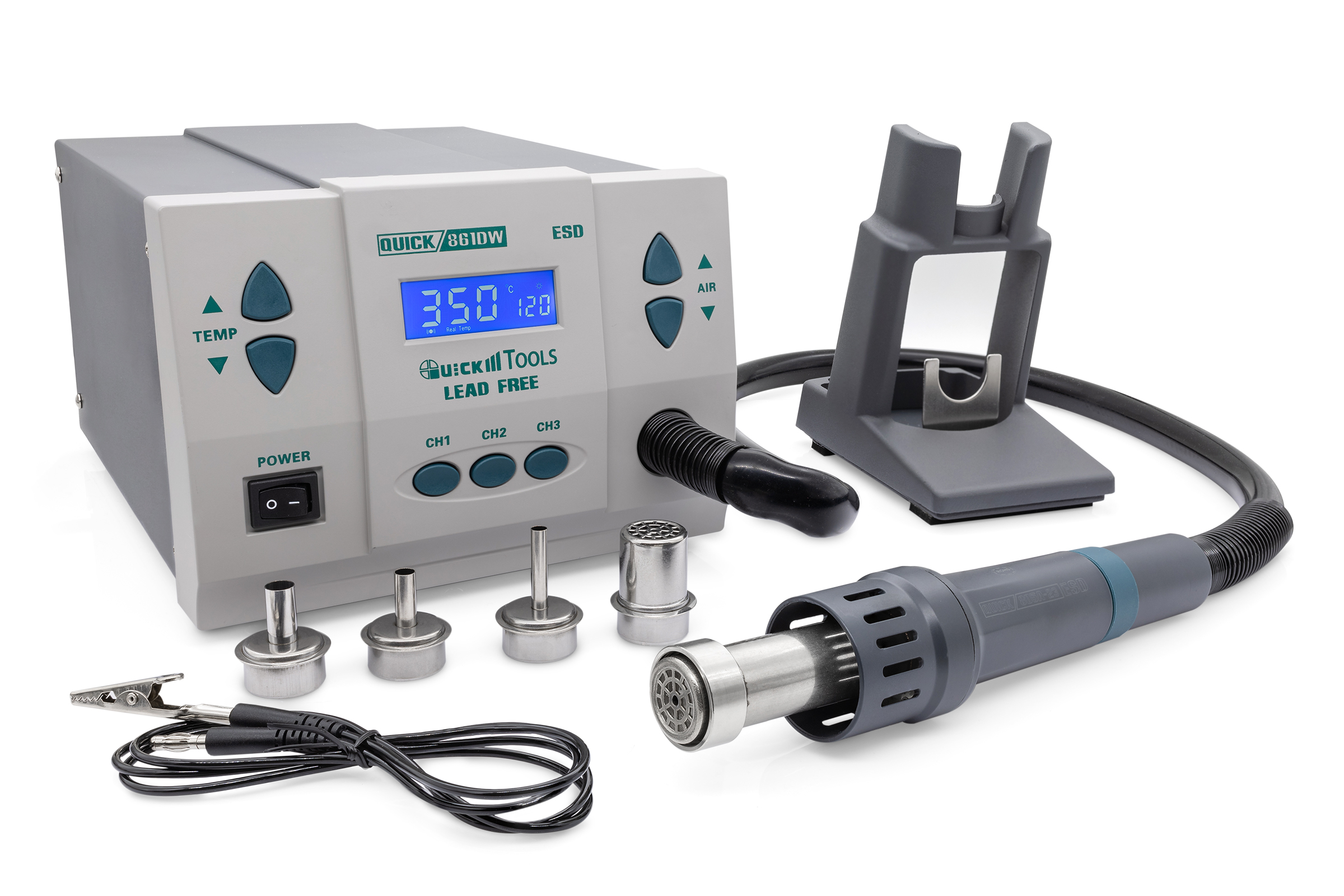

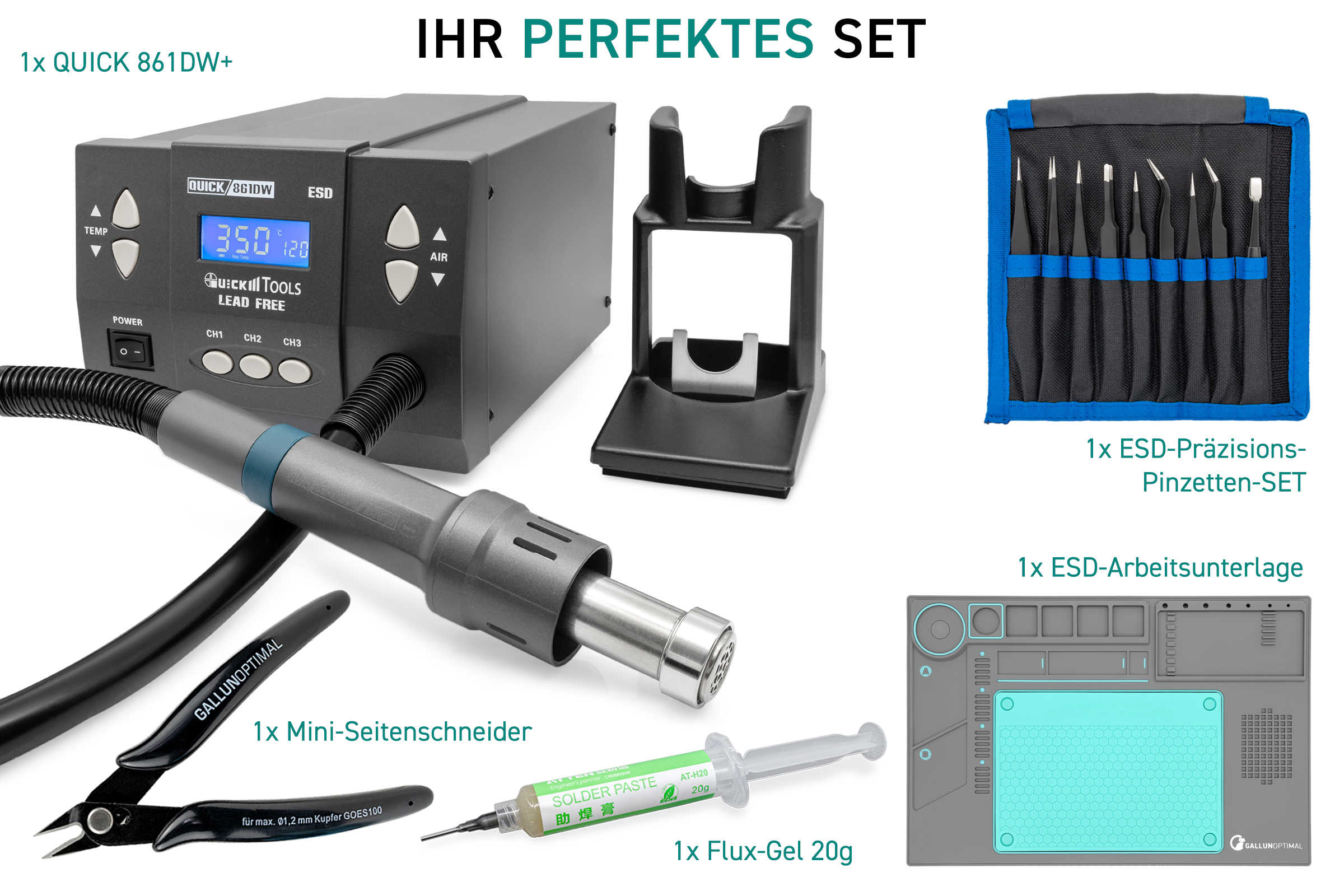

Scope of delivery:

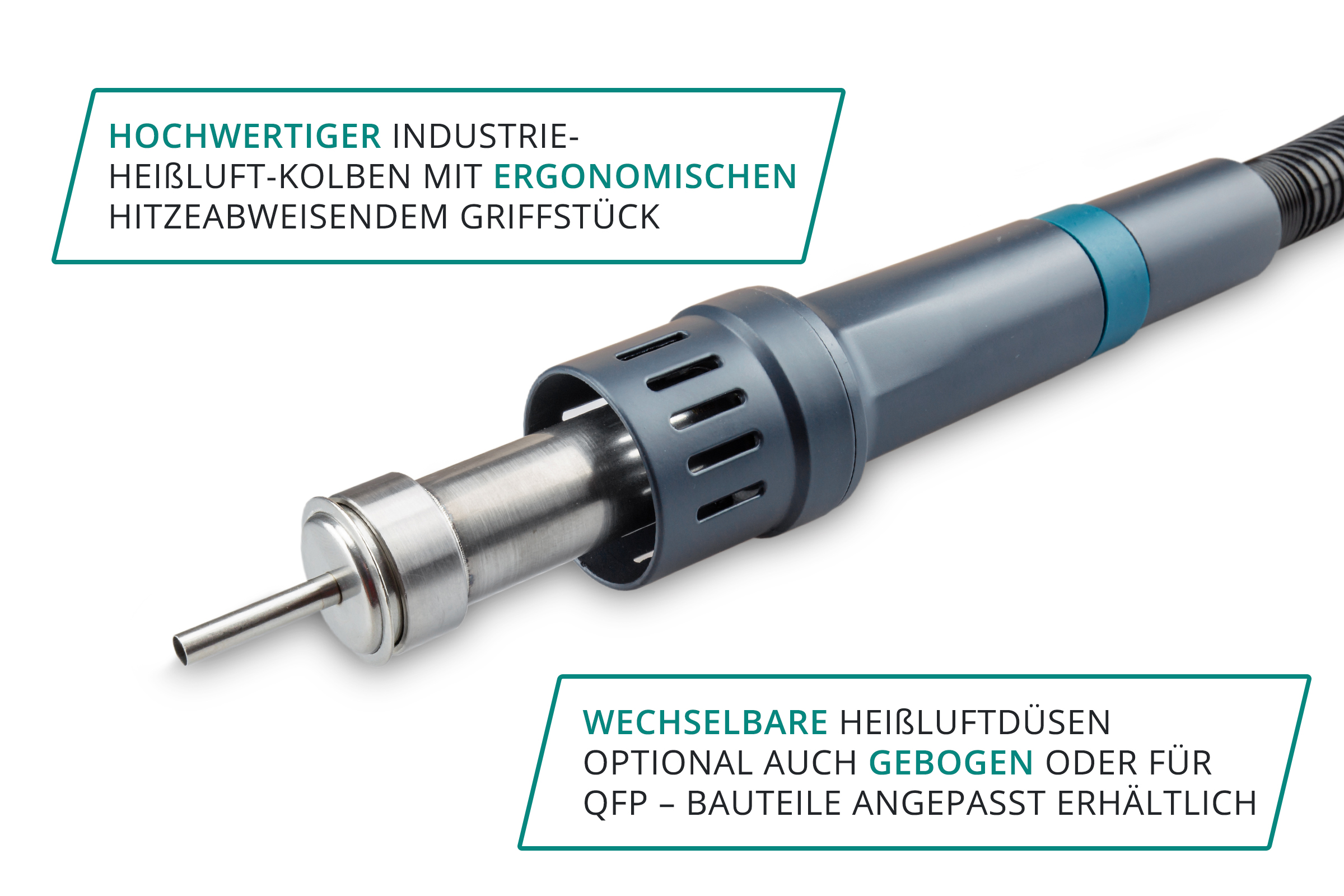

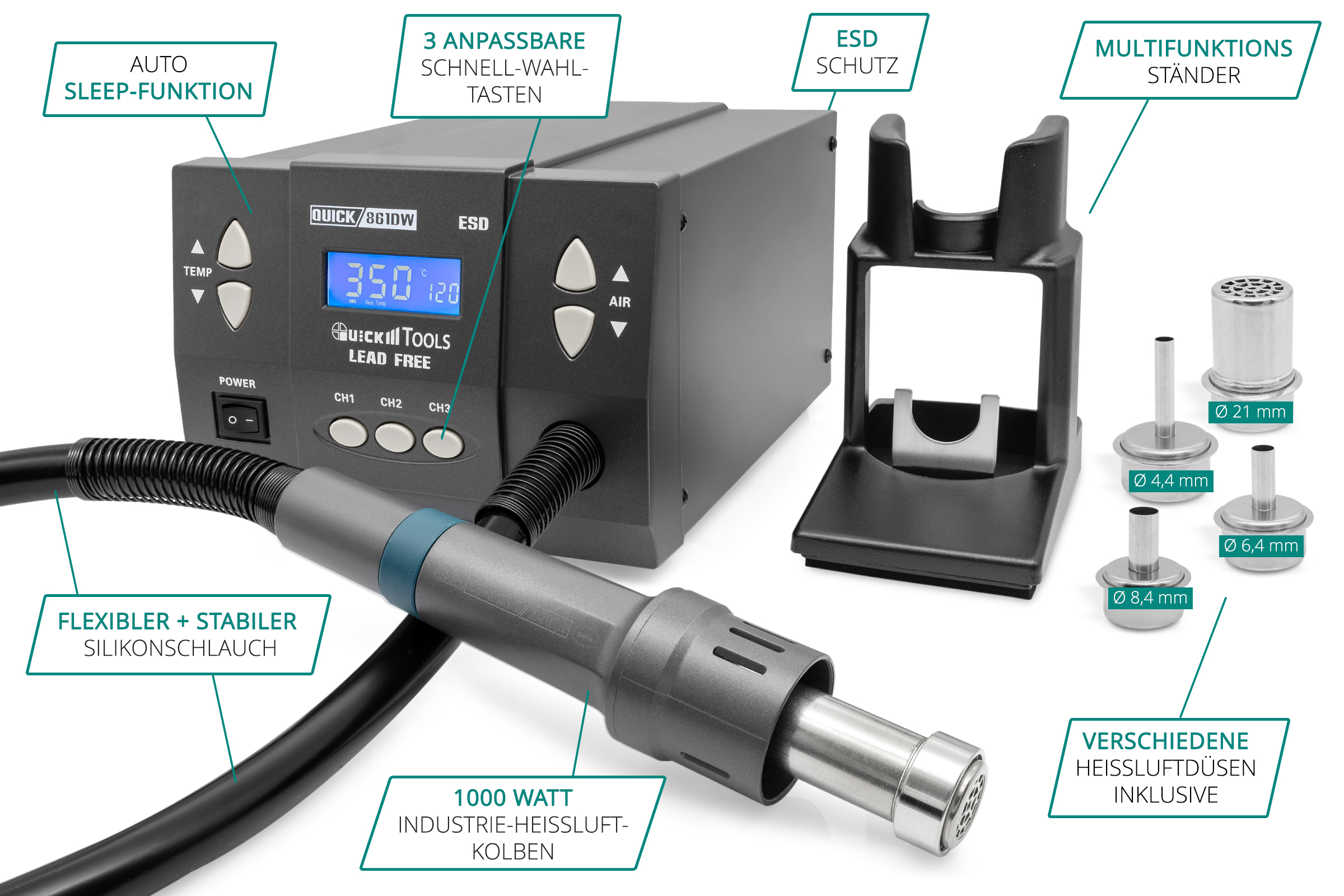

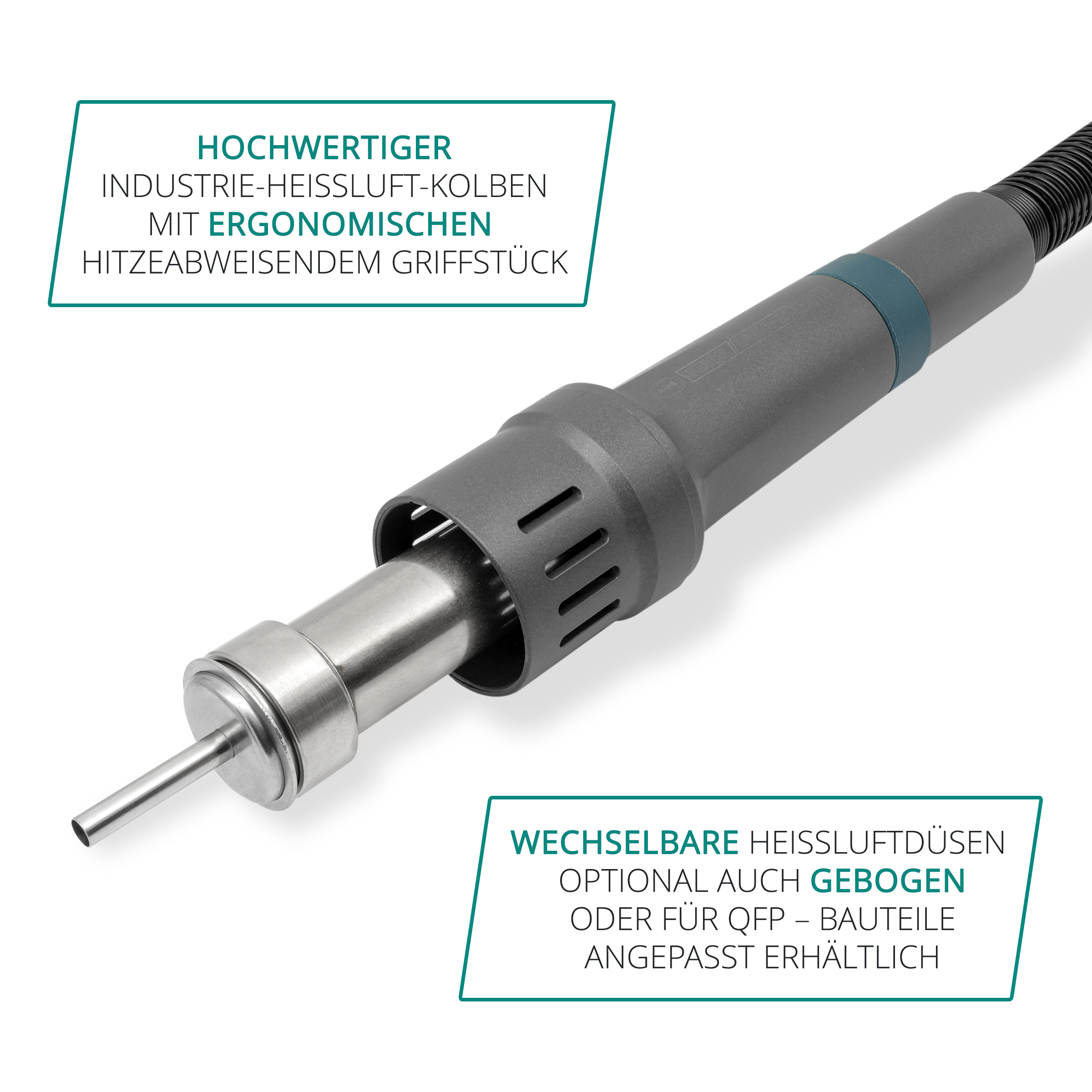

– 861DW rework soldering station incl. ELK805A 1000 watt hot air soldering iron

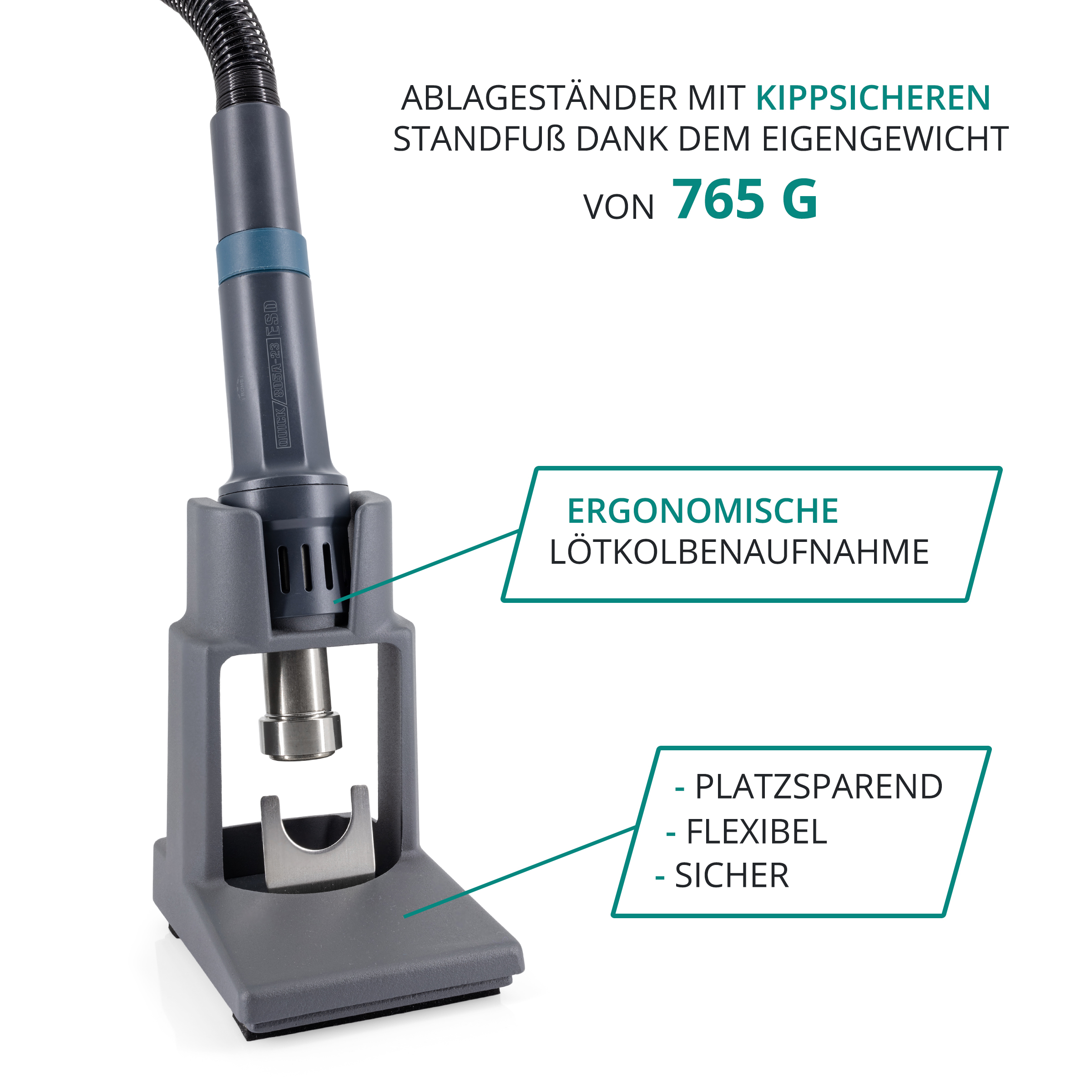

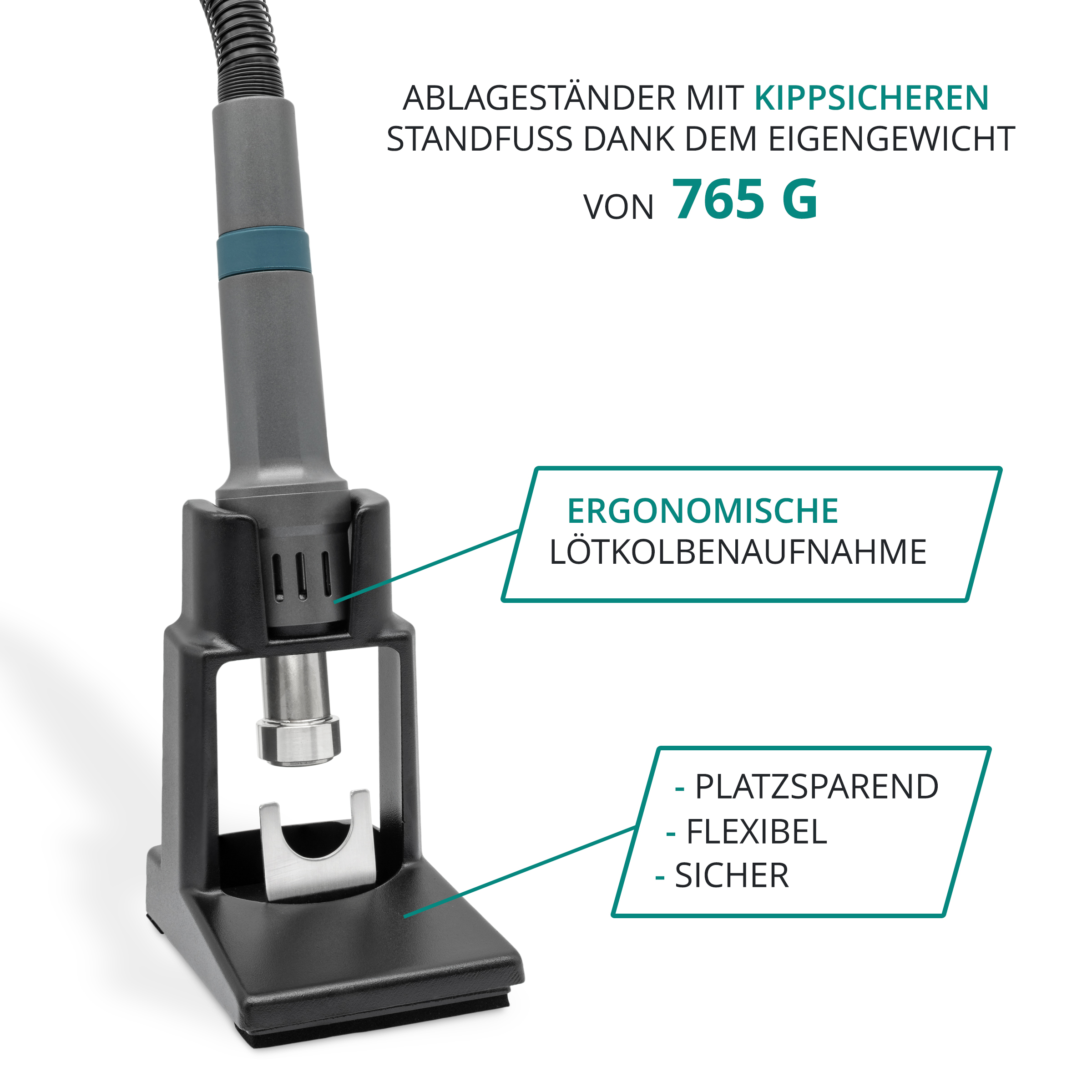

– AS861DW storage stand
– Potential equalization cable with optional crocodile clip

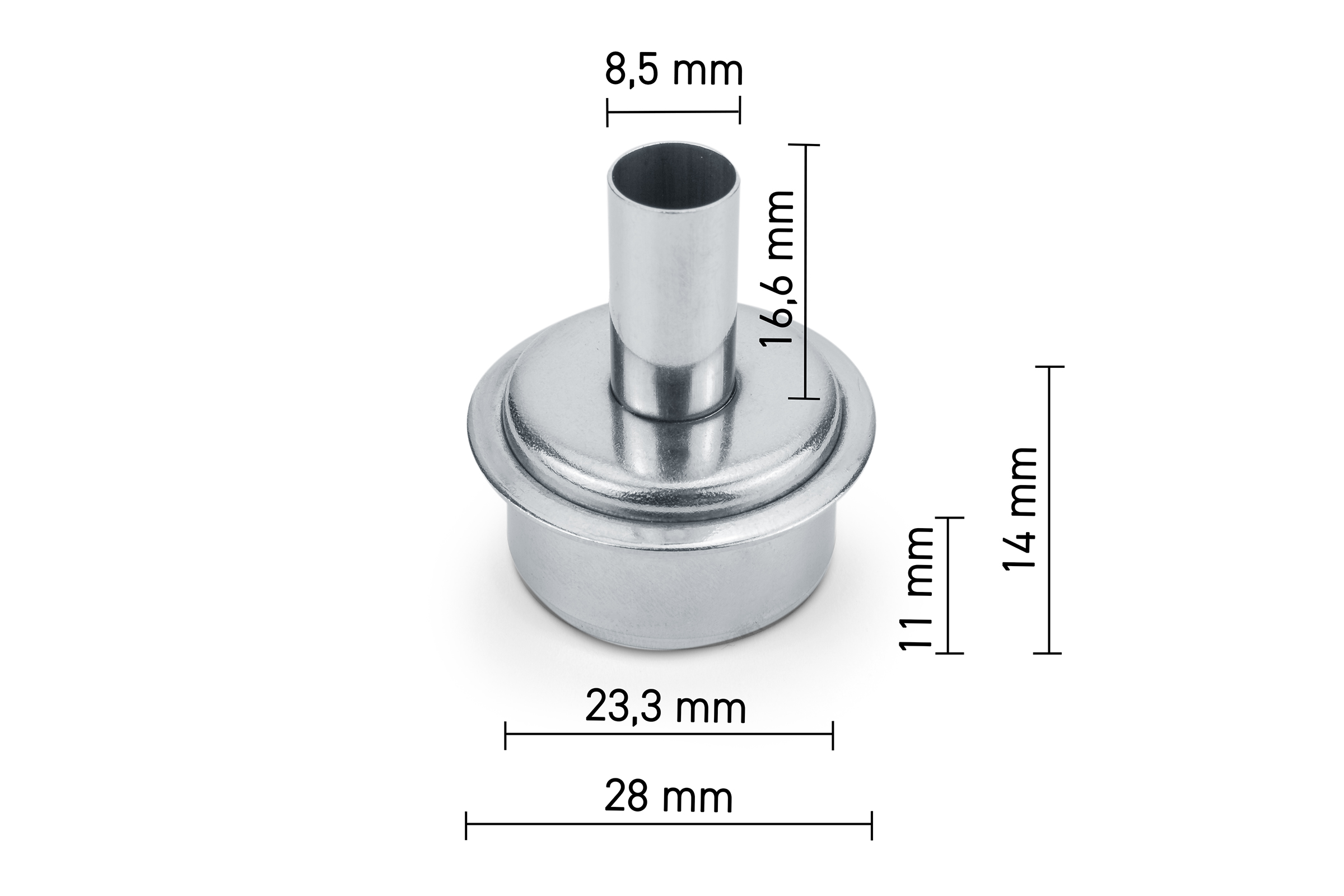

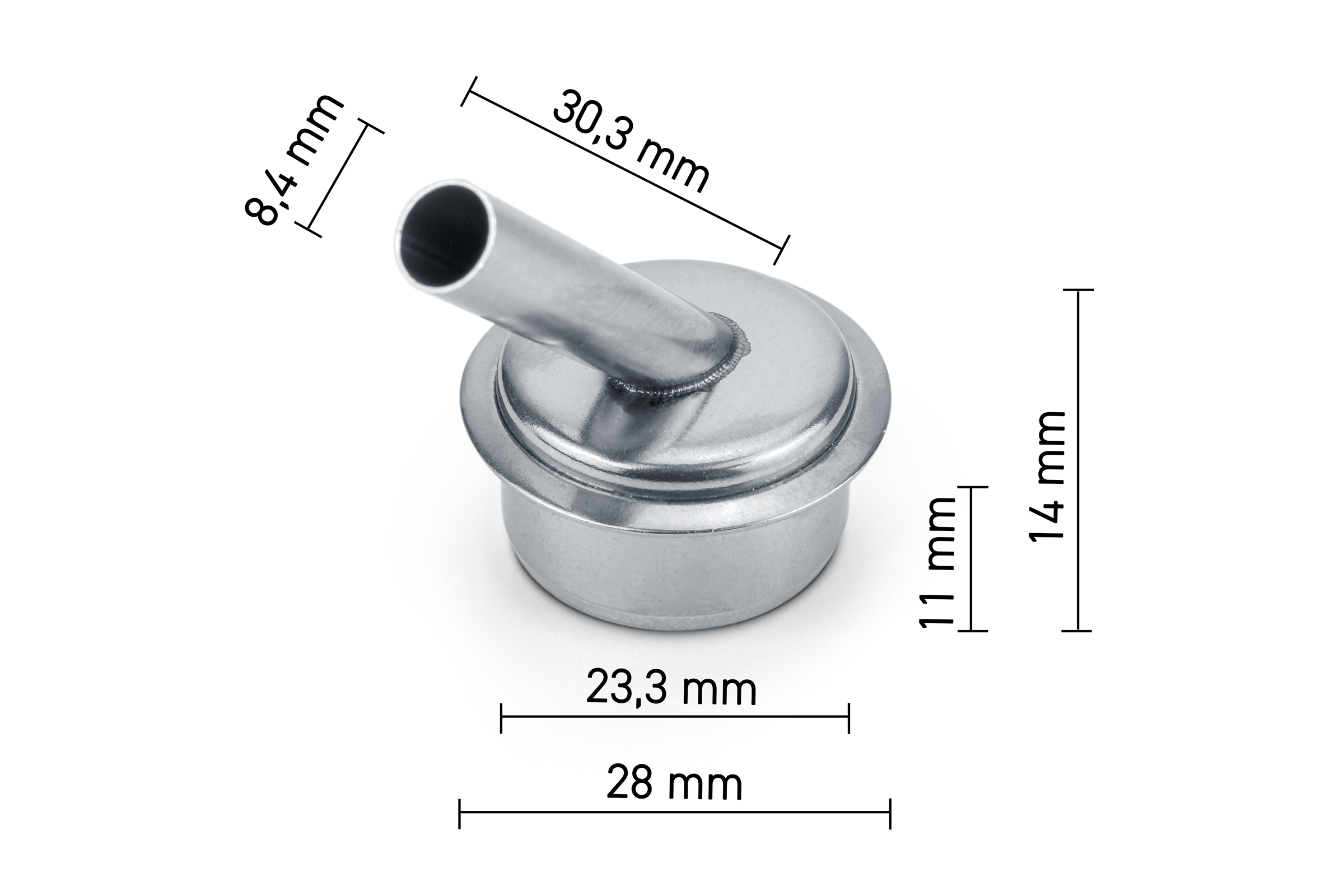

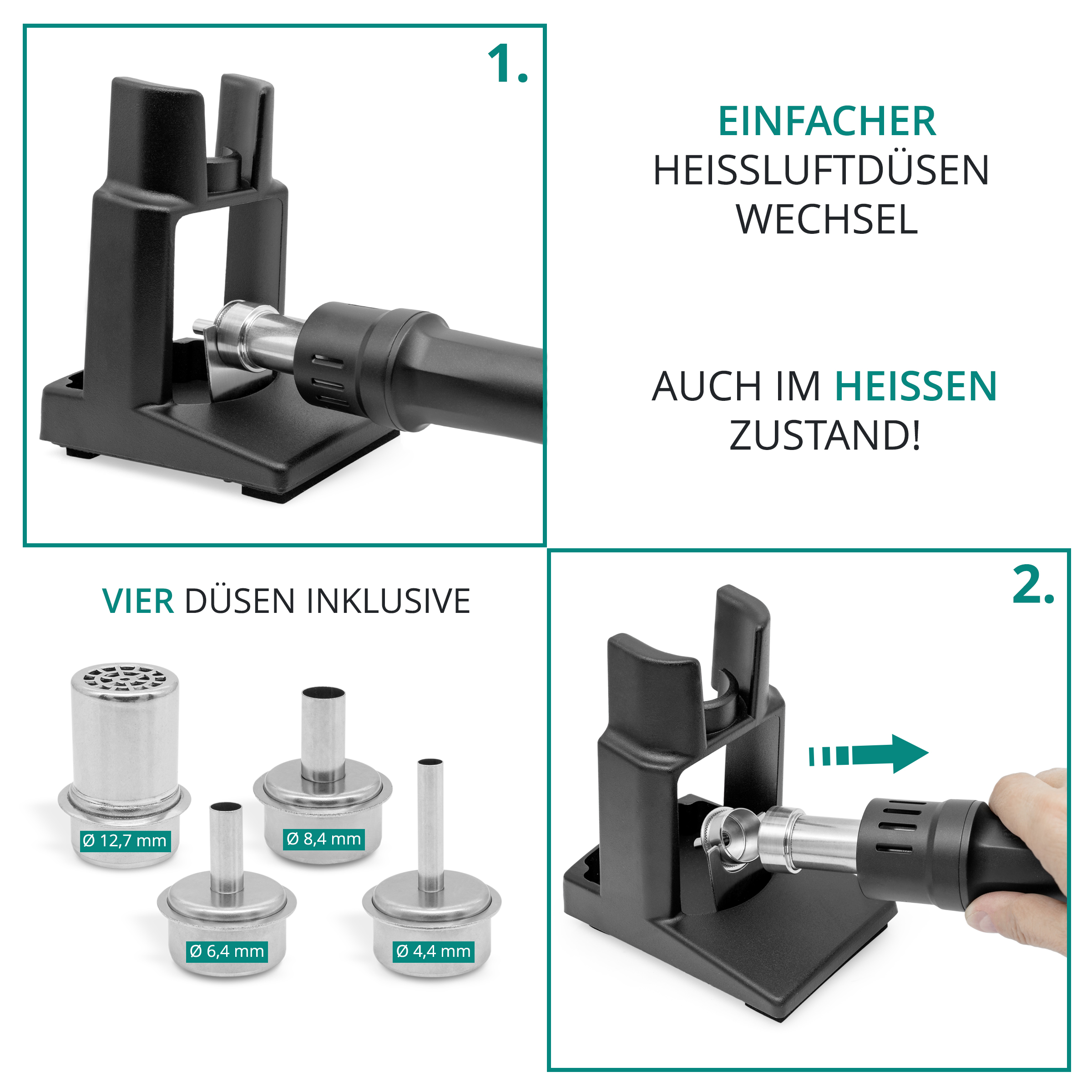

– 4 hot air nozzles NK1130 (4.4 mm), NK2064 (6.4 mm), NK2084 (8.4 mm), NK990 (16 mm meshed)

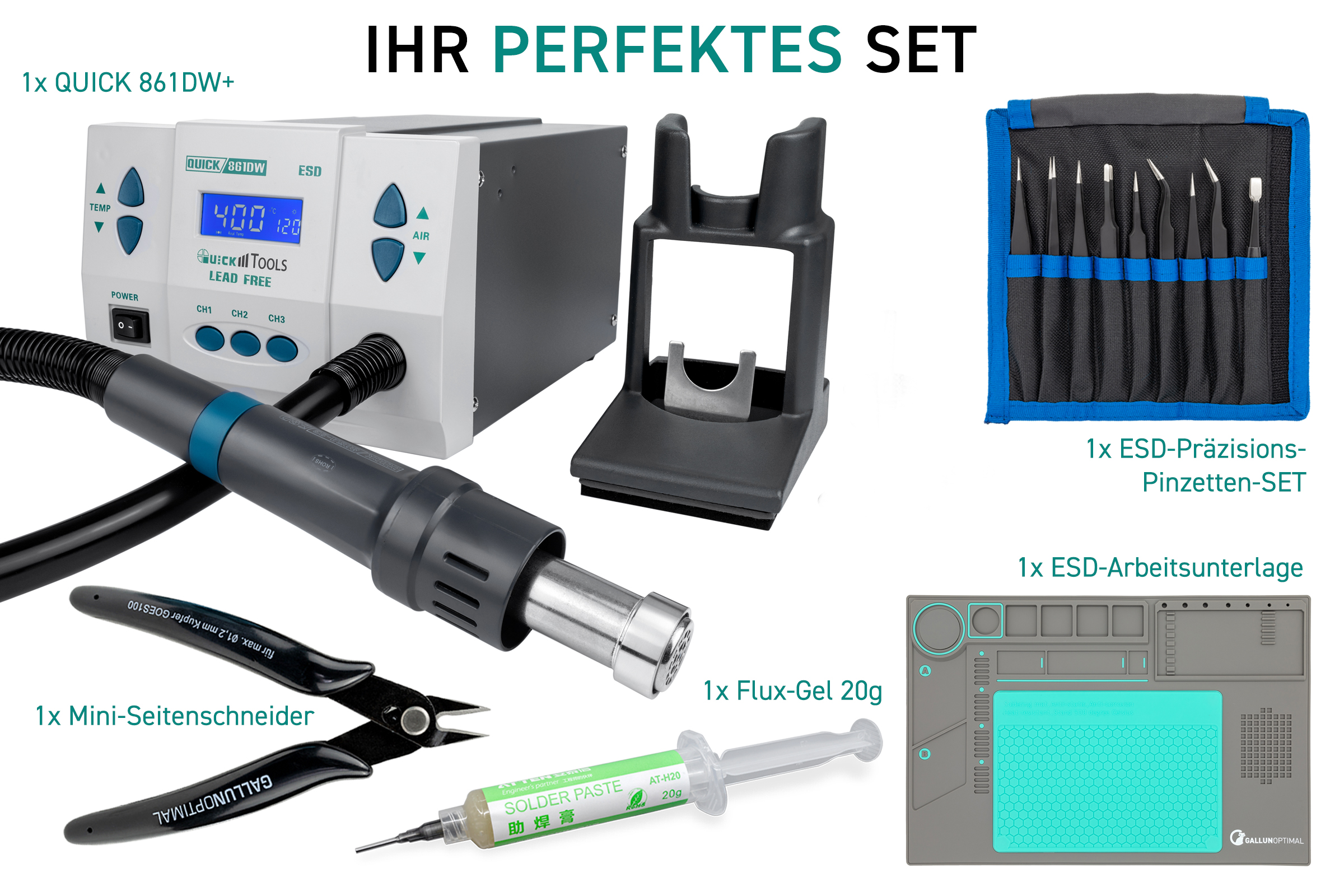

– Accessory set consisting of ESD work mat, ESD precision tweezers SET, mini side cutter and flux gel 20g
