ERSA 80 S Standard Soldering Iron
The proven ERSA 80 S soldering iron, 80W, is designed for soldering jobs with a higher heat requirement, such as on copper conductors with cross sections of 4 mm² and also when soldering thin sheets. The soldering iron is equipped with a 4.8 mm chisel-shaped angled ERSADUR permanent soldering tip (0082JD) and a rest (0A04).
| Dimensions | 410 × 75 × 47 mm |
|---|---|
| Heating time | 180.00 sec. |
| Max. solder temperature | 410 °C |
| ROHS compliance | Yes |
| Voltage | 230.00 Volt |
| Weight | 0,48 kg |
| anitstatic design | No |
| max. power | 80 Watt |
| operating type | Mains operation |

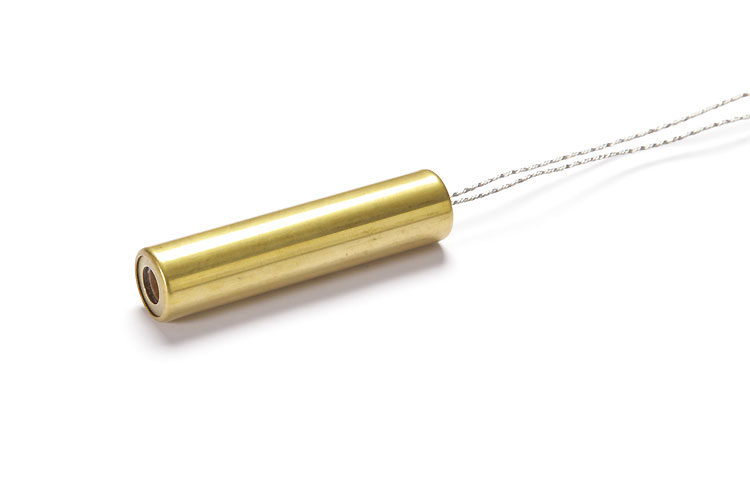

| replacement heater | E008100 |

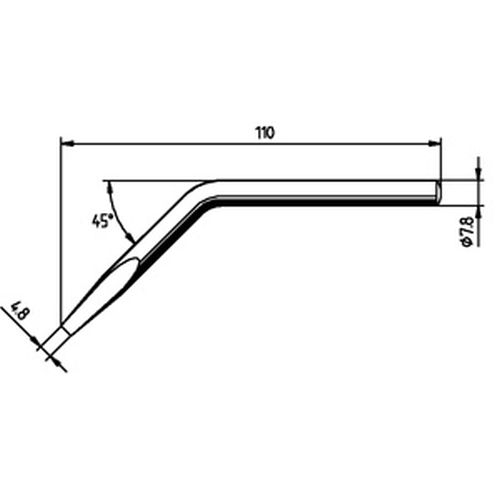

| soldering-/desoldering tip | 0082JD |
| soldering-tip diameter / width | 4.80 mm |
| soldering-tip form | chisel-shaped |
| surface soldering-tip | Permanent soldering tip |
| type of soldering tip | curved |
