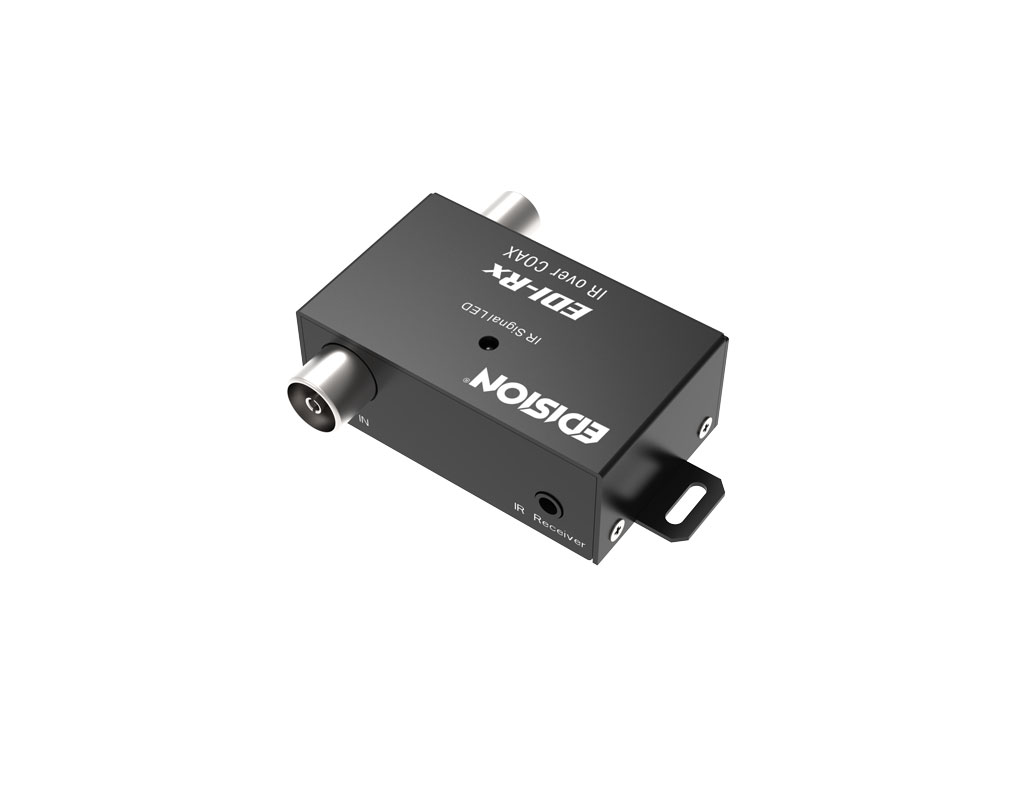

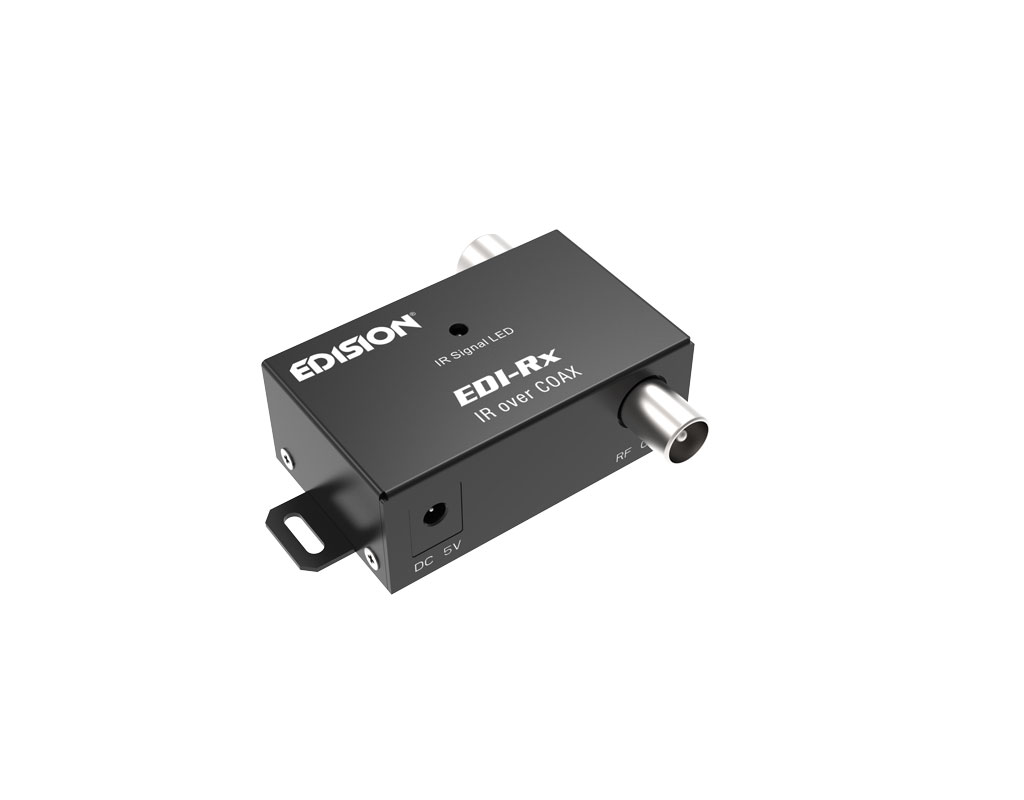

The EDI-Rx IR control system allows you to control the infrared signals of your audio/video source on another TV via the existing RF network.
Please note that the HDMI Modulator Xtend is a requirement for the main installation.
Features:
– Infrared control via coaxial cable

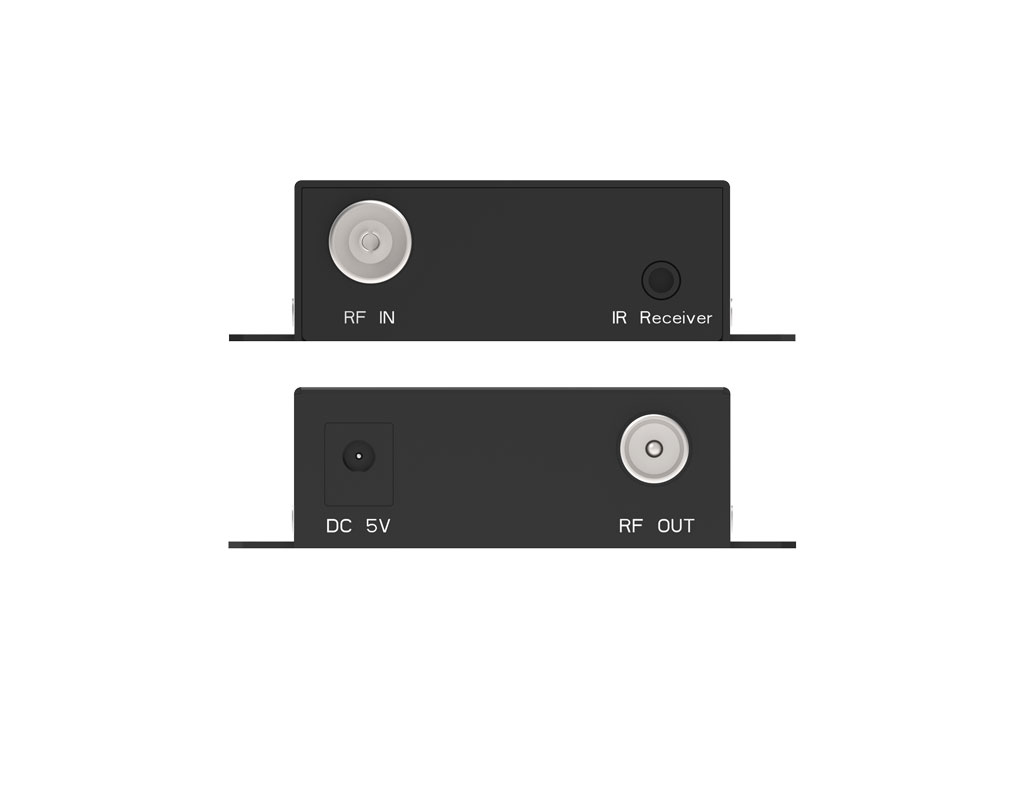

– Connectors: RF input, RF output, IR output, DC 5V
– Power supply via USB to DC (5V) cable
– Infrared control display
– Low power consumption
Technical specifications:
– Modulation type: ASK
– Frequency range: VHF III (174-230 MHZ) & UHF (470-862 MHZ)
– RF input: 1 x IEC-type
– RF output: 1 x IEC-type
– IR receiver output: stereo jack 3.5mm (jack to IR EDI-Rx cable)
– DC output: 5V/500mA (DC to USB cable)
– IR signal LED: infrared control display
Contents:
– IR control system EDI-Rx

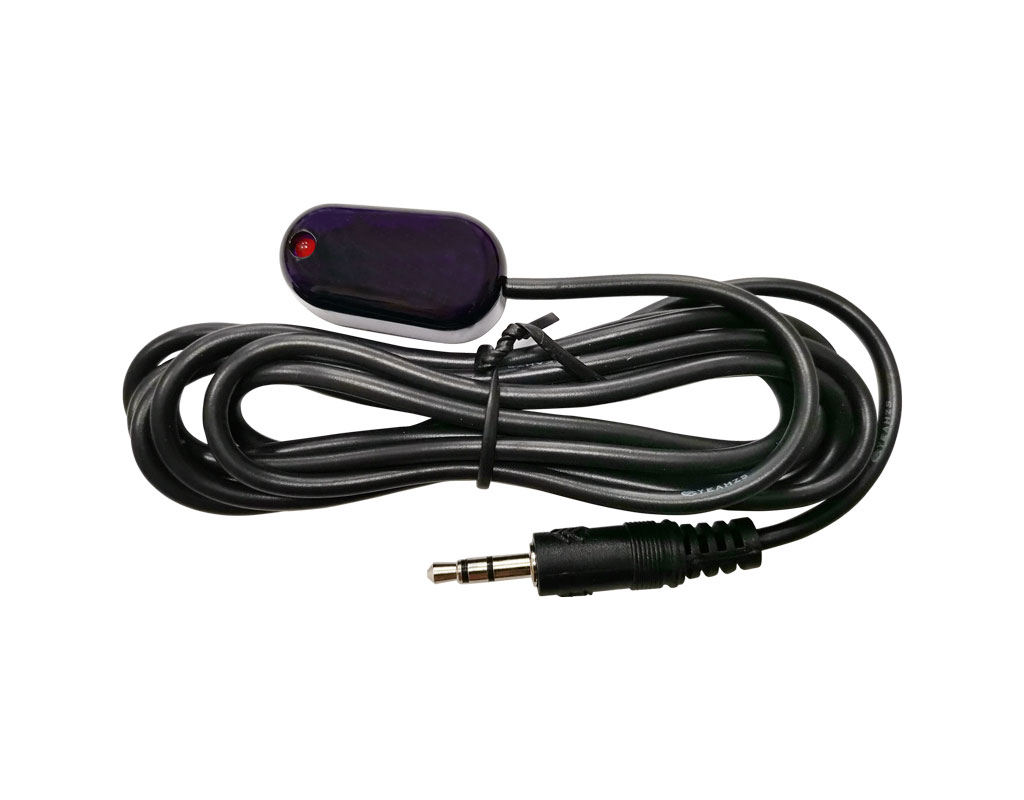

– Jack to IR Rx cable

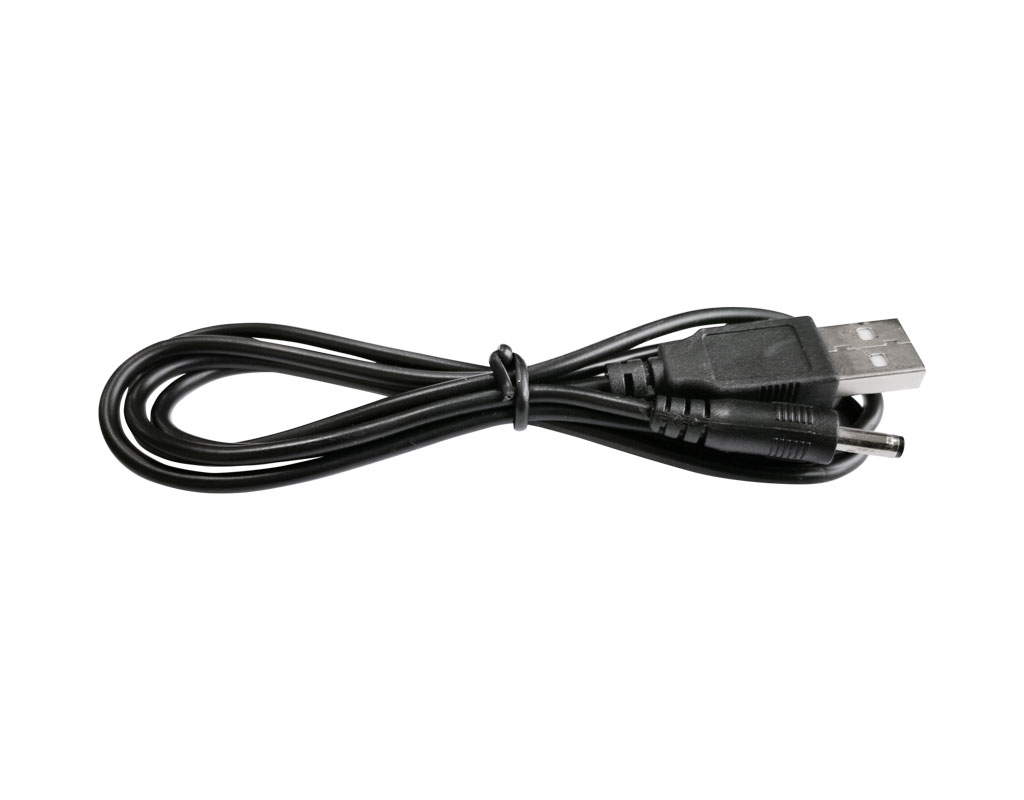

– USB to DC (5V) cable
– Operating instructions EN/DE/GR
