Bernstein ESD Handling Set 5 pcs.
– foldable worktop mat 500 x 400 x 0.5 mm
– black, dissipative 10^8 Ohm (surface resistance according to DIN IEC 61340-4-1)
– mat with 2 x 10 mm press-studs
– Adjustable elastic wristband with woven silver-plated plastic fibers, allergy-free.
Meets the safety requirements for wrist grounding according to BGFE.
Spiral cable 2.4 m highly elastic
Grounding cable 1.8 m 1 snap fastener and 1 eyelet 4 mm, 1 MOhm
Grounding plug 2 x 10 mm and M 5 connection
Weight 160 g
Area of application

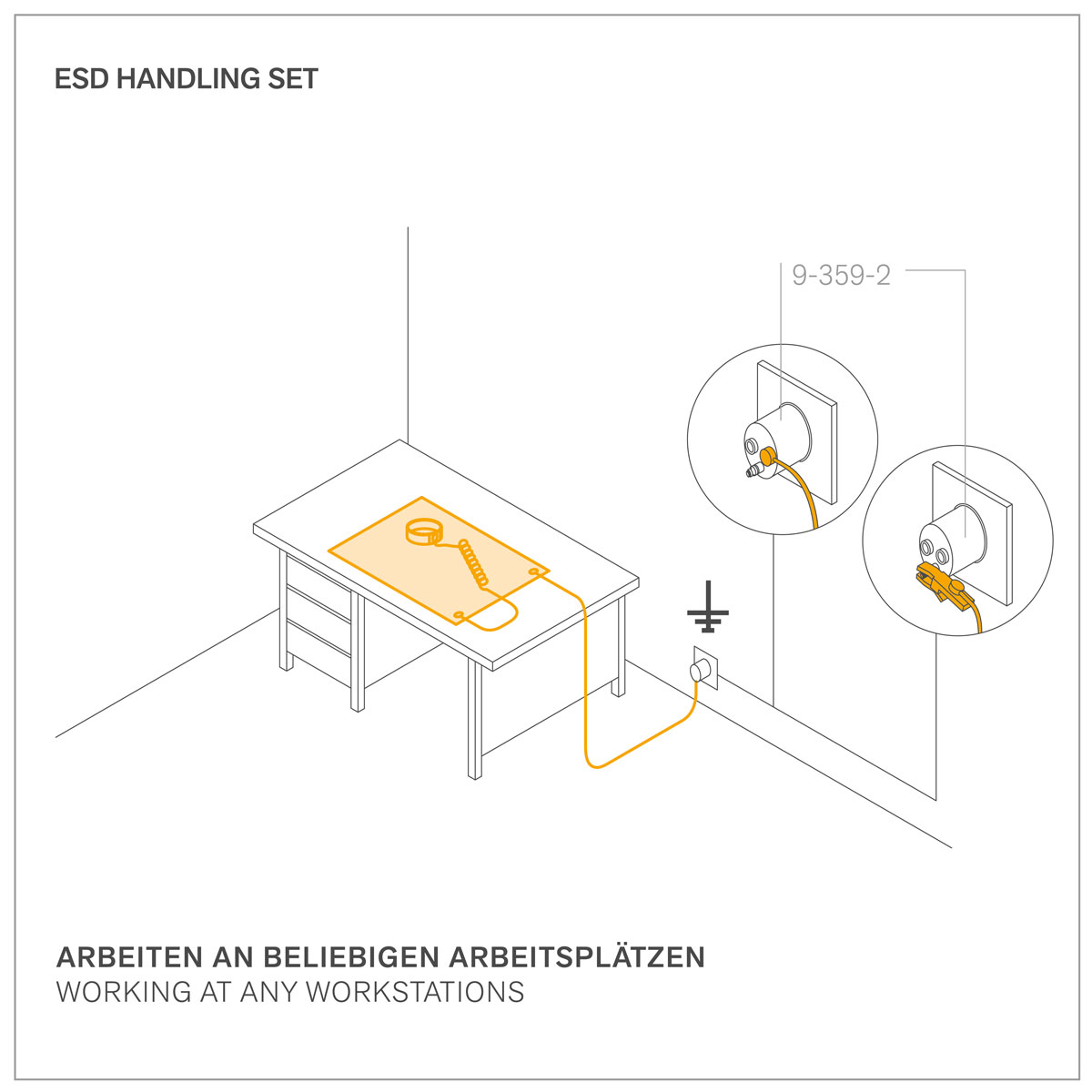

Wrist grounding, as a safe method to discharge electrostatic charge from persons, consists of an adjustable wristband with woven silver-plated plastic fibers (close skin contact necessary) and a spiral cable that connects the wristband to the grounding point via snap fasteners (DK) in an electrically conductive manner. The spiral cable contains a safety resistor of 1 MOhm on each connection side and is approved for use at workplaces with a nominal voltage of up to 250 VAC. To ensure adequate insulation, the armband must be stored in a dry place.
Technical product description
Antistatic mat surface resistance <1 x 10^8 Ohm (DIN 54345-1, DIN 53482), extremely tear-resistant, cold resistance -10 °C (DIN EN 1876-1), heat resistance +70 °C, flame retardant (according to LOBA regulation, NFP 92507: M2), abrasion resistant, antimicrobial
General information
Suitable for use in electrostatically protected areas (ESD workstation/ESD protected area).
Contents
ESD handling set consisting of:
– 9-354-100 ESD table mat 500x400x0.5mm 2DK
– 9-341-1 ESD contact wrist strap yellow
– 9-341-2 ESD coiled cable for wrist strap highly elastic 2.4m yellow
– 9-344-1 ESD grounding cable 1 MOhm, 1800mm 1DK 10mm and eyelet 4mm
– 9-359-2 ESD grounding plug 2x10mm and M5 connection
