Bernstein torque adapter set, 7 pcs, 0.6 – 3.0 Nm for 1/4 inch bits + handle
Turn your bits and a holder into your perfect torque tool. Versatile combinations and preset torque values for tightening or loosening. These high-precision precision tools with 0.6 to 3.0 Nm are used in combination with 1/4 inch bits. Often used as a complete solution for working on electronic devices, in quick-change systems, robot stations, aerospace, medical technology, or simply on any workbench, wherever precise torque is required. The “click” sound indicates when the torque has been reached, so the adapter cannot be overtightened. When loosening screws, the locked core shaft prevents the torque from being released, so no additional loosening tool is required.
Precise and accurate, for 20,000 clicks. Adapters are primarily suitable for manual operation. In conjunction with power tools, we recommend a maximum speed of 100 rpm with minimal click repetition. Higher speeds are possible as custom-made products, please contact us!
The torque value is preset in the adapter and can be clamped between any standard holding tool and a 1/4 inch bit. This turns any bit holder into a torque screwdriver.
Adapter Ø 12 mm, length 28 mm (without shaft)
Hexagonal shaft 1/4 inch. In conjunction with power tools, max. speed 100 rpm.
Magnetic bit holder 1/4 inch
Material alloy steel HRC 43-48
in plastic Quadro box
Individually packed
28 mm

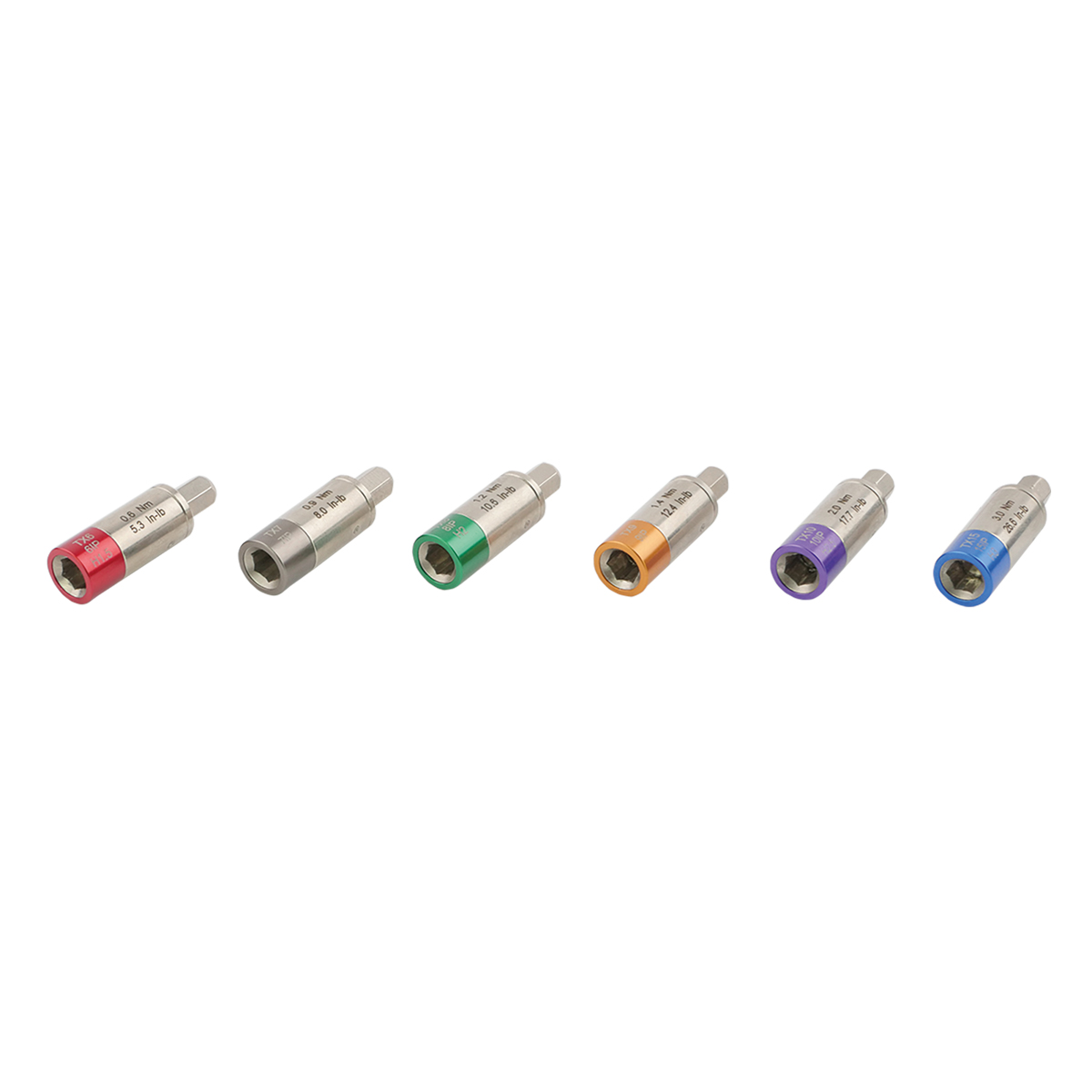

Torque adapter set consisting of:
4-981 Torque adapter 0.6 Nm for 1/4 inch bits
4-982 Torque adapter 0.9 Nm for 1/4 inch bits
4-983 Torque adapter 1.2 Nm for 1/4 inch bits
4-984 Torque adapter 1.4 Nm for 1/4 inch bits
4-985 Torque adapter 2.0 Nm for 1/4 inch bits
4-986 Torque adapter 3.0 Nm for 1/4 inch bits

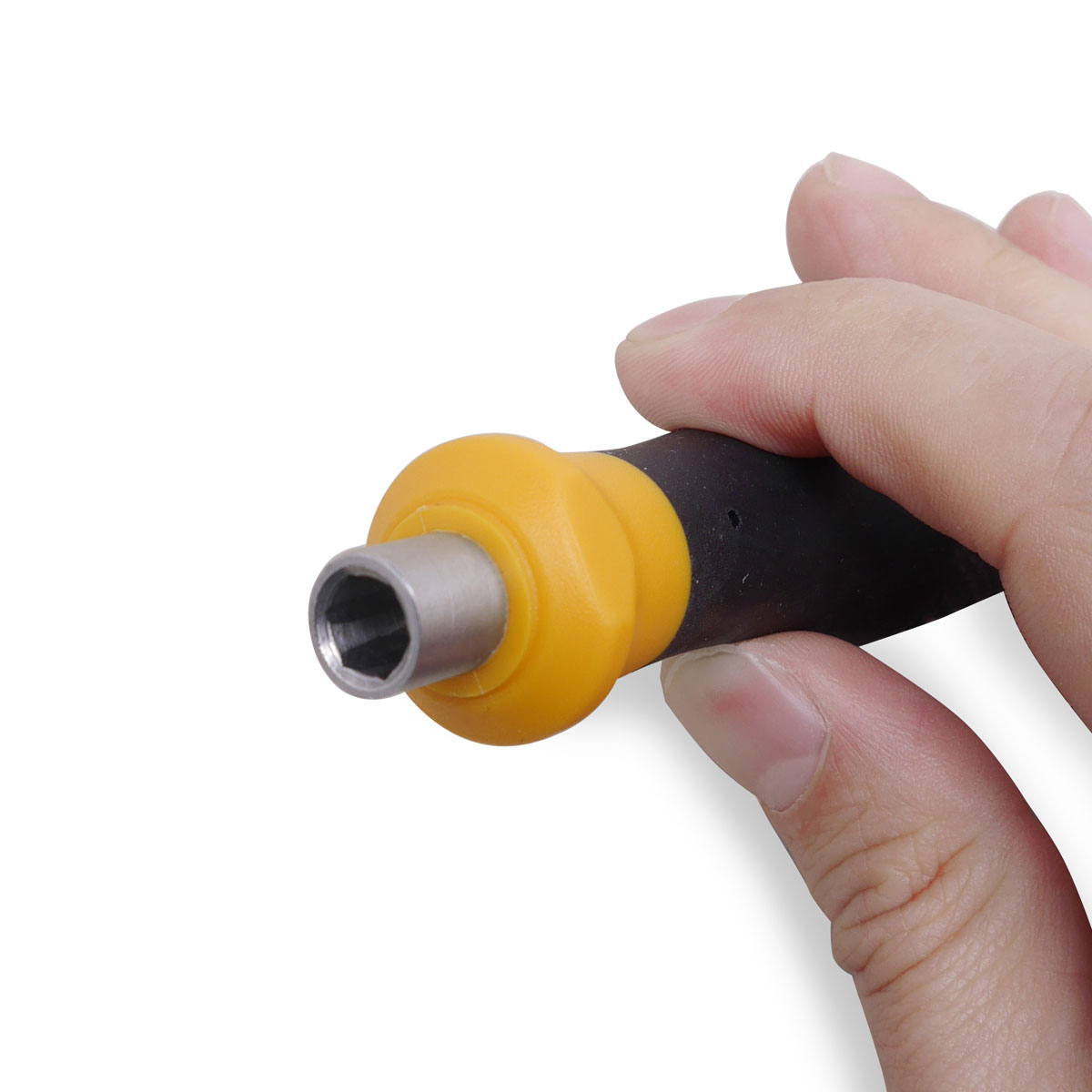

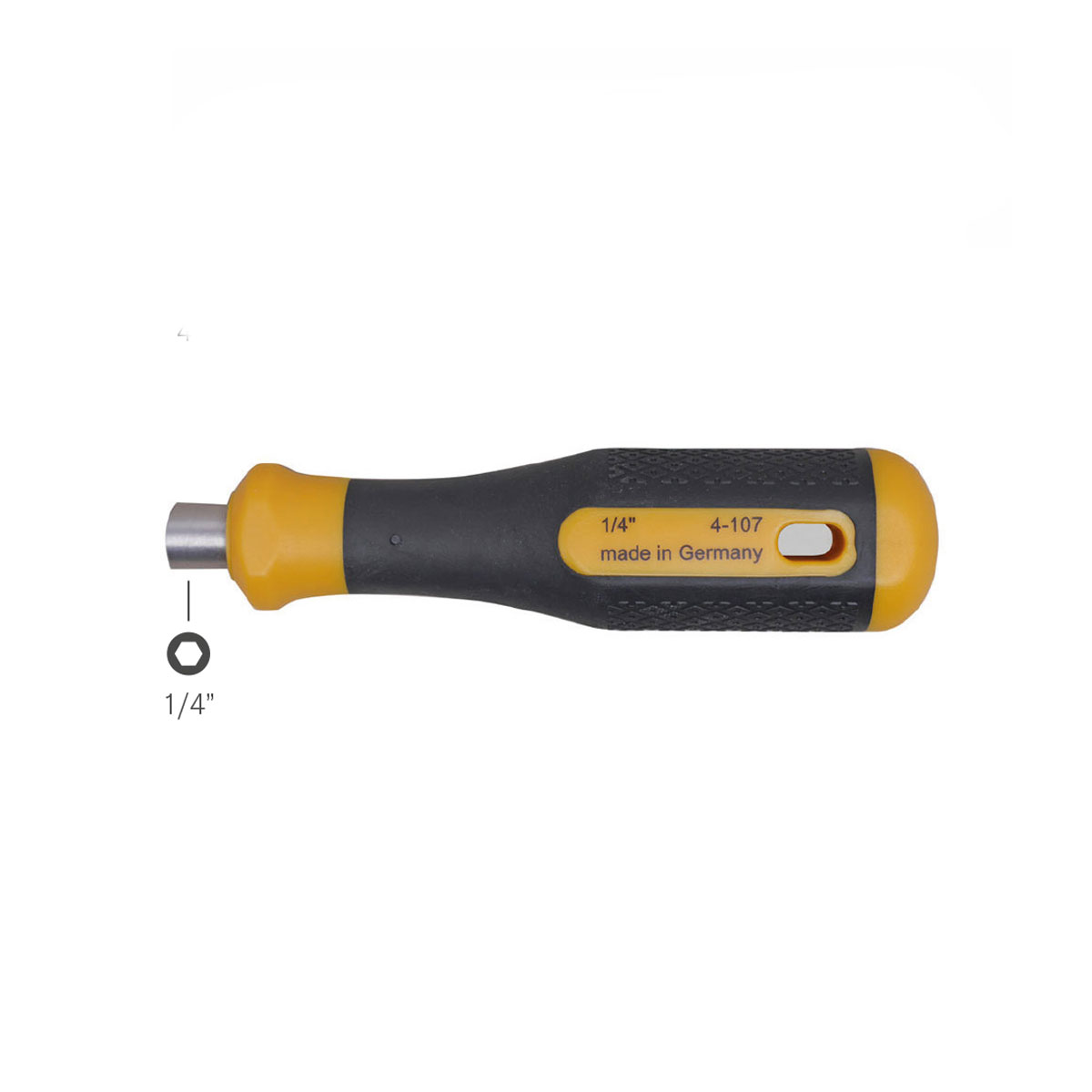

4-107 Screwdriver handle with 1/4 inch bit magnet holder
