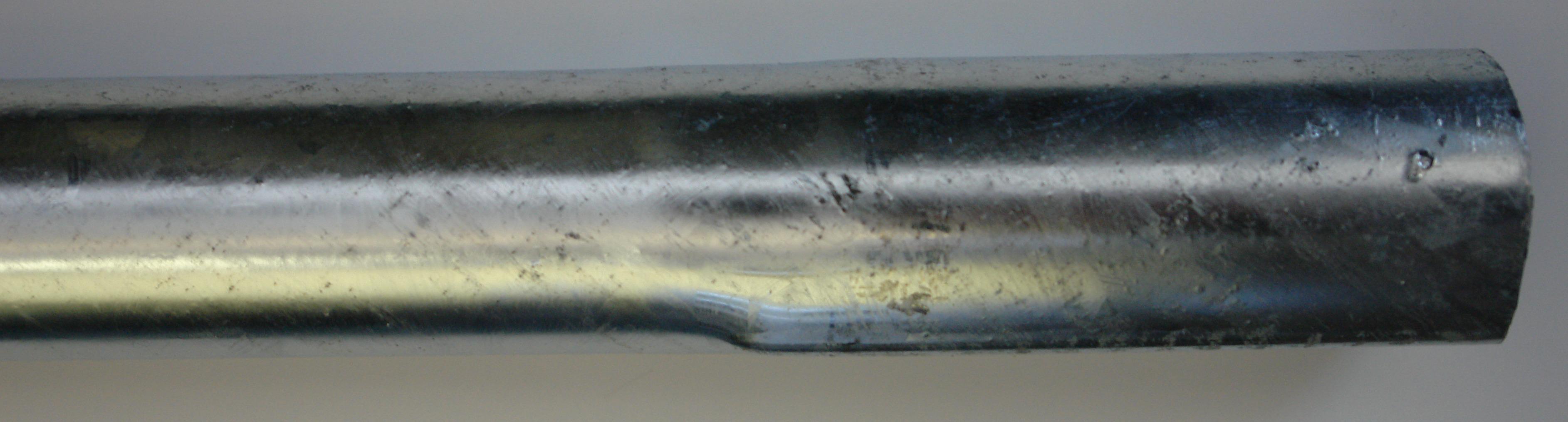

Hot-Dip Galvanised Steel Antenna Mast Ø 48 × 2 mm – 1.5 m
The AS36151 is a robust steel mast designed for satellite, terrestrial antenna and suitable reception installations.
It is manufactured from quality steel tubing and measures 48 mm in outside diameter, 2 mm in wall thickness and 150 cm in overall length.
The steel surface is hot-dip galvanised. According to the available product data, the zinc coating thickness is approximately 55–70 µm, providing protection against typical outdoor weather exposure.
The mast can be used for new installations, retrofit projects or as a replacement for an existing antenna mast.
Tube dimensions Ø 48 × 2 mm × 150 cm
The main dimensions are:
Outside diameter: 48 mm
Wall thickness: 2 mm
Length: 150 cm
Tube dimensions: Ø 48 × 2 mm × 150 cm
The 48 mm diameter can be combined with compatible wall brackets, rafter mounts, mast clamps and other antenna mounting systems designed for this tube size.
Quality steel tube
The mast is manufactured from quality steel tubing with a 2 mm wall thickness.
It provides a robust mechanical base for many typical antenna installations.
Hot-dip galvanised surface
The mast is hot-dip galvanised for outdoor use.
According to the available product data, the zinc coating thickness is approximately 55–70 µm.
This protects the steel surface against typical weather conditions such as rain, moisture and temperature changes.
Typical applications
The AS36151 can be used for:
satellite dishes
DVB-T/T2 antennas
terrestrial antennas
directional antennas
suitable radio antennas
replacement of existing antenna masts
retrofit and maintenance work
Suitable mounting systems
The mast can be combined with compatible:
wall brackets
roof rafter mounts
chimney mounting systems
mast clamps
other mounting structures designed for Ø 48 mm tubes
Mechanical load considerations
The suitability of the complete installation depends on more than the mast tube alone.
Important factors include:
antenna size
antenna weight
wind surface area
unsupported mast length
mounting height
bracket spacing
supporting structure
local wind conditions
Earthing and lightning protection
Depending on installation location and system design, requirements concerning earthing, equipotential bonding and lightning protection may apply.
Technical specifications
Article reference: AS36151
Article number: 36151
Product type: Steel antenna mast
Material: Quality steel tube
Surface: Hot-dip galvanised
Zinc coating according to product data: Approx. 55–70 µm
Length: 150 cm
Outside diameter: 48 mm
Wall thickness: 2 mm
Tube dimensions: Ø 48 × 2 mm × 150 cm
Weight according to dealer data: Approx. 3.5 kg
Application: Satellite and antenna installations
Installation area: Outdoor use
Package contents
1 × hot-dip galvanised steel mast Ø 48 × 2 mm, length 150 cm
Antenna, mounting brackets, clamps and additional installation equipment are not included.
