40 mm LNB Adapter for Compatible Kathrein and Astro Satellite Dishes

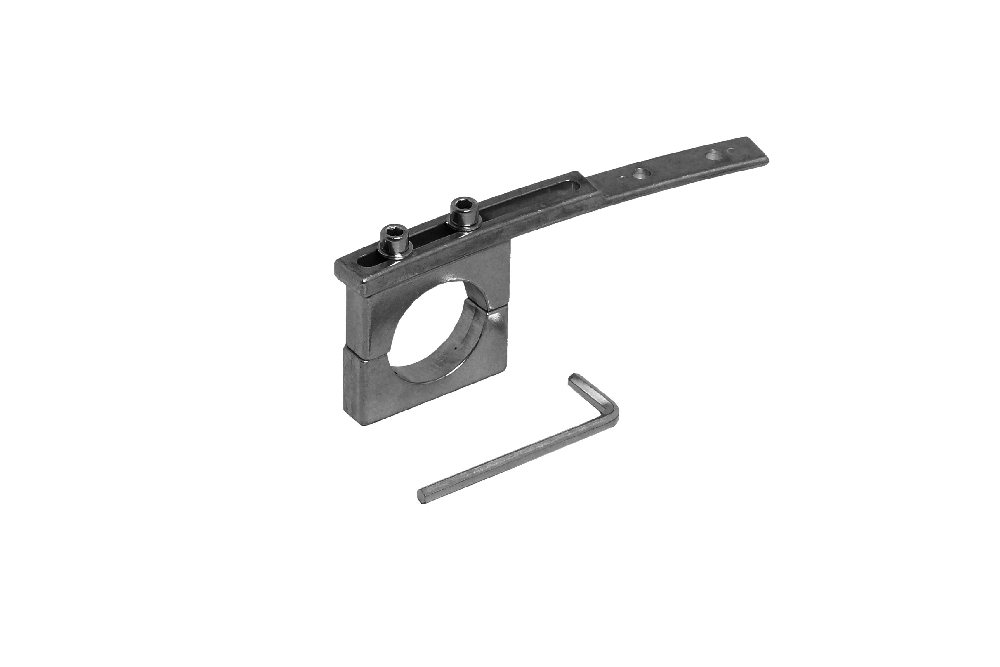

The AS61150 is a mechanical LNB adapter and feed holder designed to install a standard LNB with a 40 mm feed neck on compatible Kathrein and Astro satellite antennas.
It is particularly useful when an existing satellite reflector is still mechanically serviceable but the original LNB must be replaced or converted to a more widely available 40 mm standard LNB.
For standard 40 mm LNBs
The LNB holder is designed for:
Ø 40 mm feed necks
The actual LNB feed-neck diameter should be checked before installation.
For compatible Kathrein and Astro antennas
The adapter is intended for suitable Kathrein and Astro satellite antenna systems.
Because both manufacturers have produced different antenna and feed-arm designs, compatibility should be checked with the actual antenna model before installation.
The description should not be interpreted as universal compatibility with every Kathrein or Astro dish.
Reuse an existing satellite reflector
A typical application is modernising an existing installation where:
the original LNB is defective
the original LNB is no longer available
a different output configuration is required
a standard 40 mm LNB should be installed
The existing reflector can therefore remain in use if it is still mechanically suitable.
Suitable for different LNB types
Provided the LNB uses a 40 mm feed neck and there is sufficient mechanical clearance, the adapter may be used with suitable:
Single LNBs
Twin LNBs
Quad LNBs
Quattro LNBs
Unicable/SCR LNBs
The adapter itself has no electrical function.
Mechanical adapter only
The AS61150 does not provide:
switching
multiswitch functionality
DiSEqC control
Unicable/SCR processing
These functions depend on the selected LNB and the connected distribution equipment.
Check LNB housing clearance
Two LNBs with the same 40 mm feed neck can have very different housing dimensions.
Sufficient clearance between the LNB, feed arm and surrounding components should therefore be checked.
Readjust after installation
After replacing the LNB, it is recommended to check:
LNB position
LNB skew
signal strength
signal quality
Small changes in feed position can affect reception performance.
Typical applications
The AS61150 may be used for:
replacing an obsolete original LNB
converting compatible Kathrein dishes to a 40 mm LNB
converting compatible Astro dishes to a 40 mm LNB
installing a Twin LNB
installing a Quad LNB
installing a Quattro LNB
installing a compatible Unicable/SCR LNB
repairing or modernising existing satellite systems
Cable routing
Coaxial cables should be supported so that unnecessary mechanical load is not transferred to the LNB or adapter.
This is particularly important with Quattro LNBs and other installations using several cables.
Weather protection of connectors
The adapter does not provide weather sealing for the LNB’s F connectors.
Outdoor coaxial connections must be protected appropriately according to the connector and cable system used.
Dimensions and weight
Legacy sources contain different dimensional and weight values for this product.
Because these values cannot currently be assigned with sufficient confidence to the present product version, no exact overall dimensions or weight are stated as confirmed specifications.
Technical specifications
Article reference: AS61150
Article number: 61150
EAN: 4050822611508
Product type: LNB adapter / feed holder
Application: Compatible Kathrein and Astro satellite antennas
LNB feed-neck diameter: Ø 40 mm
Suitable LNB type: Standard LNBs with 40 mm feed neck
Electrical function: None
Material: Plastic according to available product information
Exact dimensions: Not currently confirmed
Weight: Not currently confirmed
Package contents
1 × AS61150 LNB adapter/feed-holder set for compatible Kathrein/Astro satellite antennas and 40 mm LNBs
Legacy product information also mentions installation tools and instructions. Due to the change of manufacturer, the current package contents should be checked before these individual accessories are stated as guaranteed components.
LNB, satellite dish, coaxial cable, F connectors, multiswitch and additional satellite accessories are not included.
